8.5'x20'x8'4"MODEL4 ENCLOSED
8.5'x20'x8'4"MODEL4 ENCLOSED
EXTERIOR
4ft' channel#5 tongue wrapped on frame
2 5/16" A-frame coupler rated @ 14,000lb
7 way round RV plug
2 detachable class 4 chains 3/8 35” clevis hook w latch rated @16,000lb each
8,000lb front tongue drop leg square jack
Emergency Breakaway kit
16” on center 1”x2” wall studs /2”x2” on roof cross members

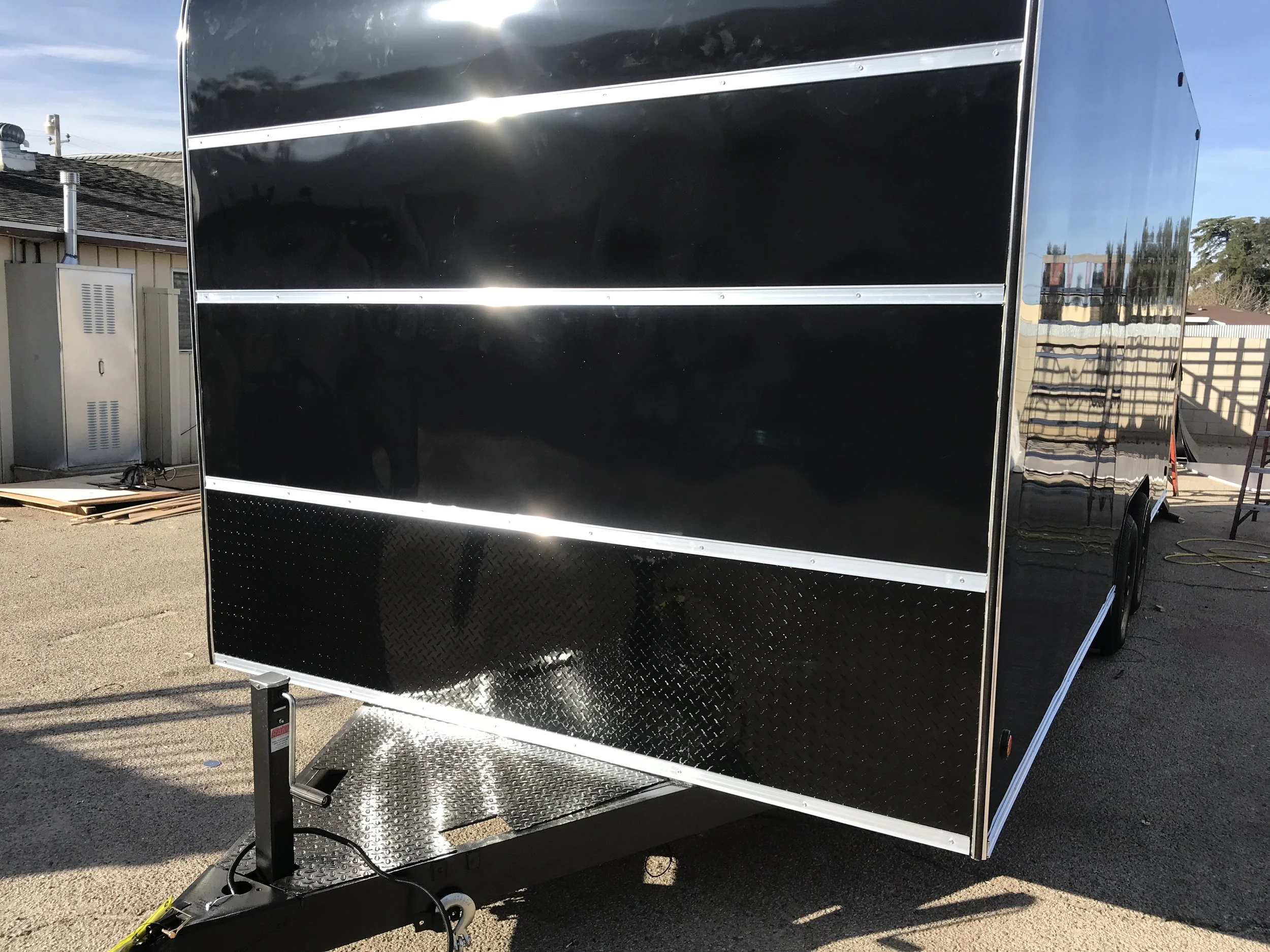

Diamond plate front/rear rock guard

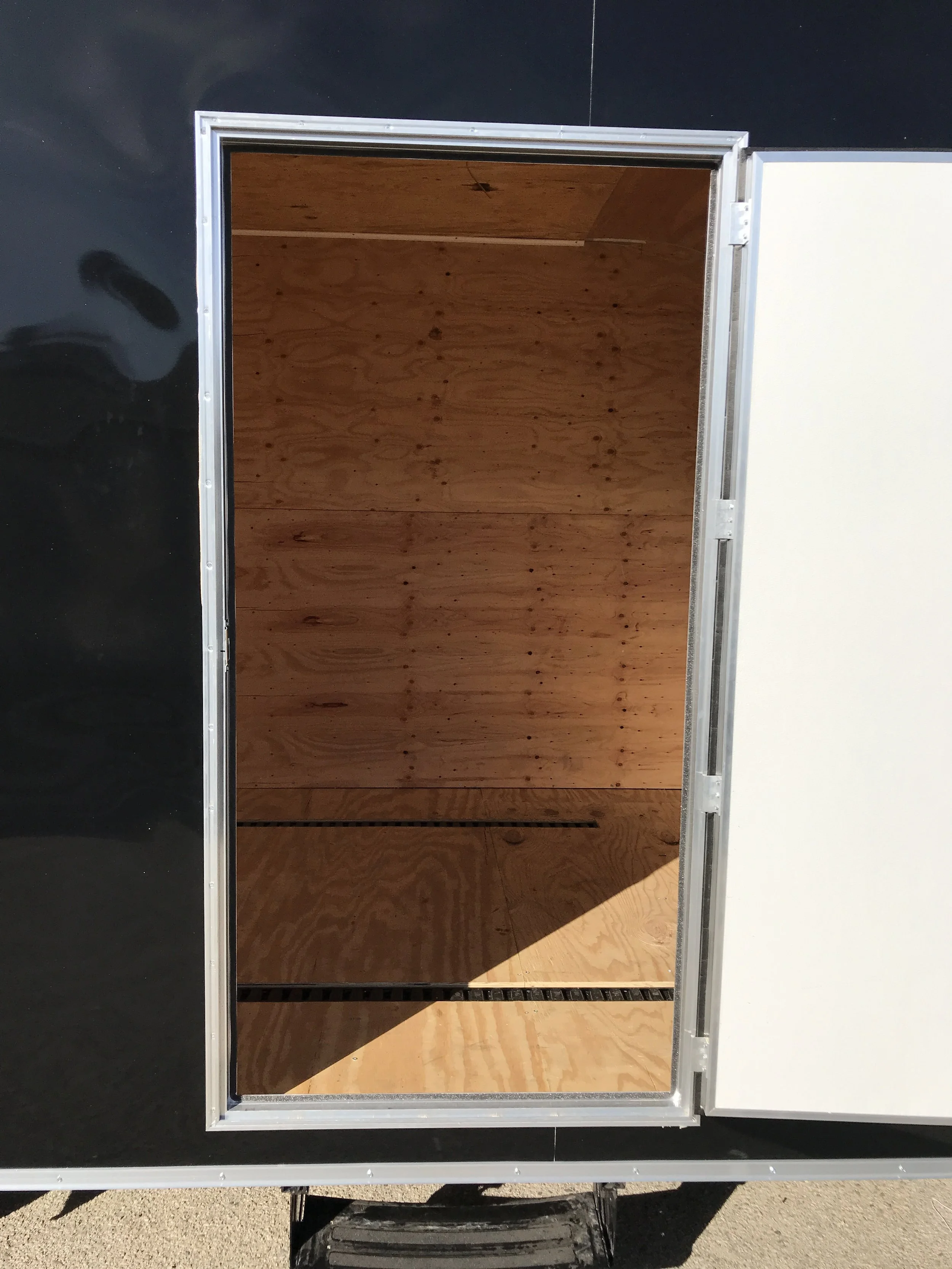

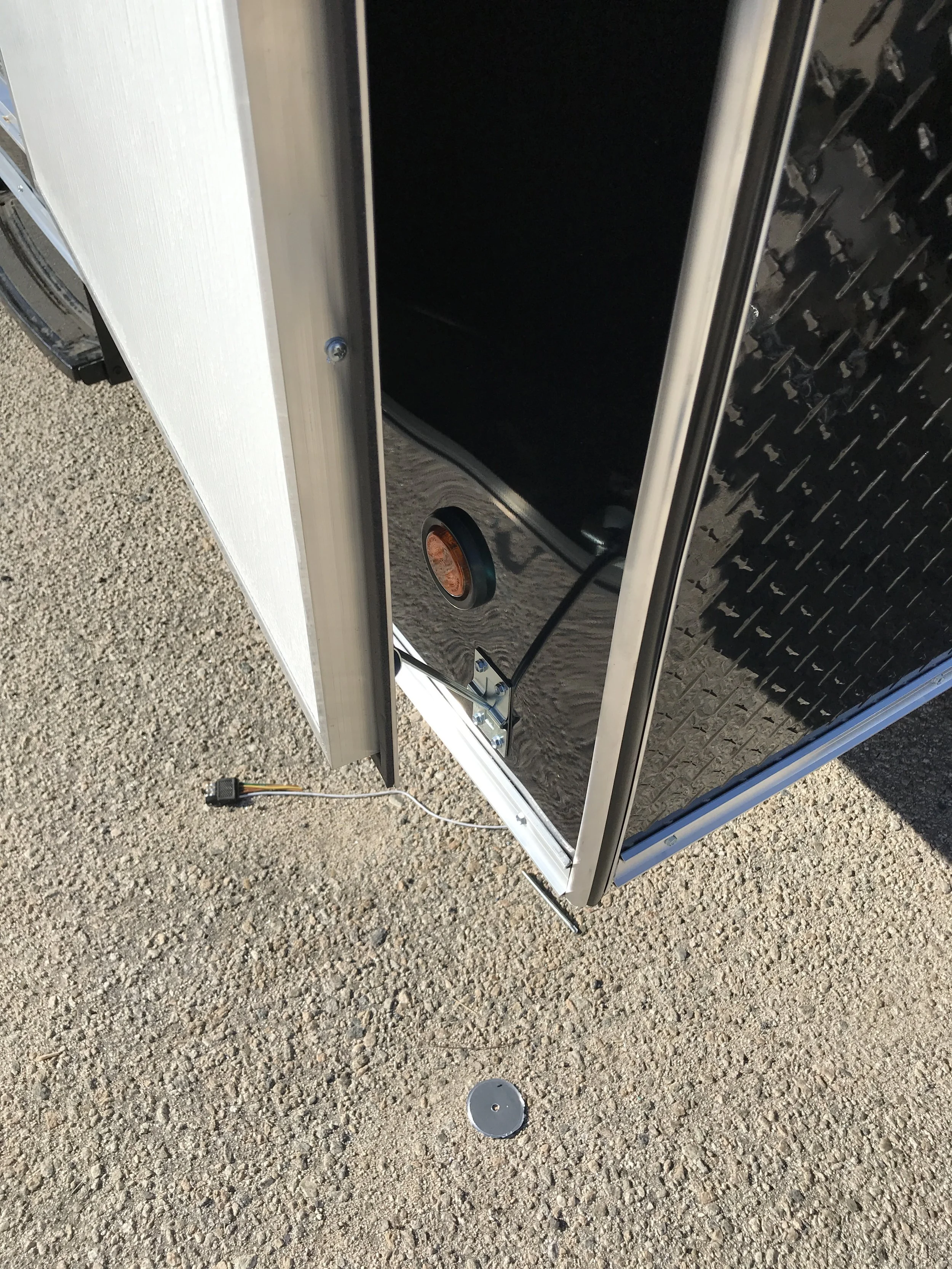

1 Passenger Side RV style door 36"x72" w 2 lockable keys & door holder
2 double eye leaf spring axles rated @6,000lb each (1 electric brake)

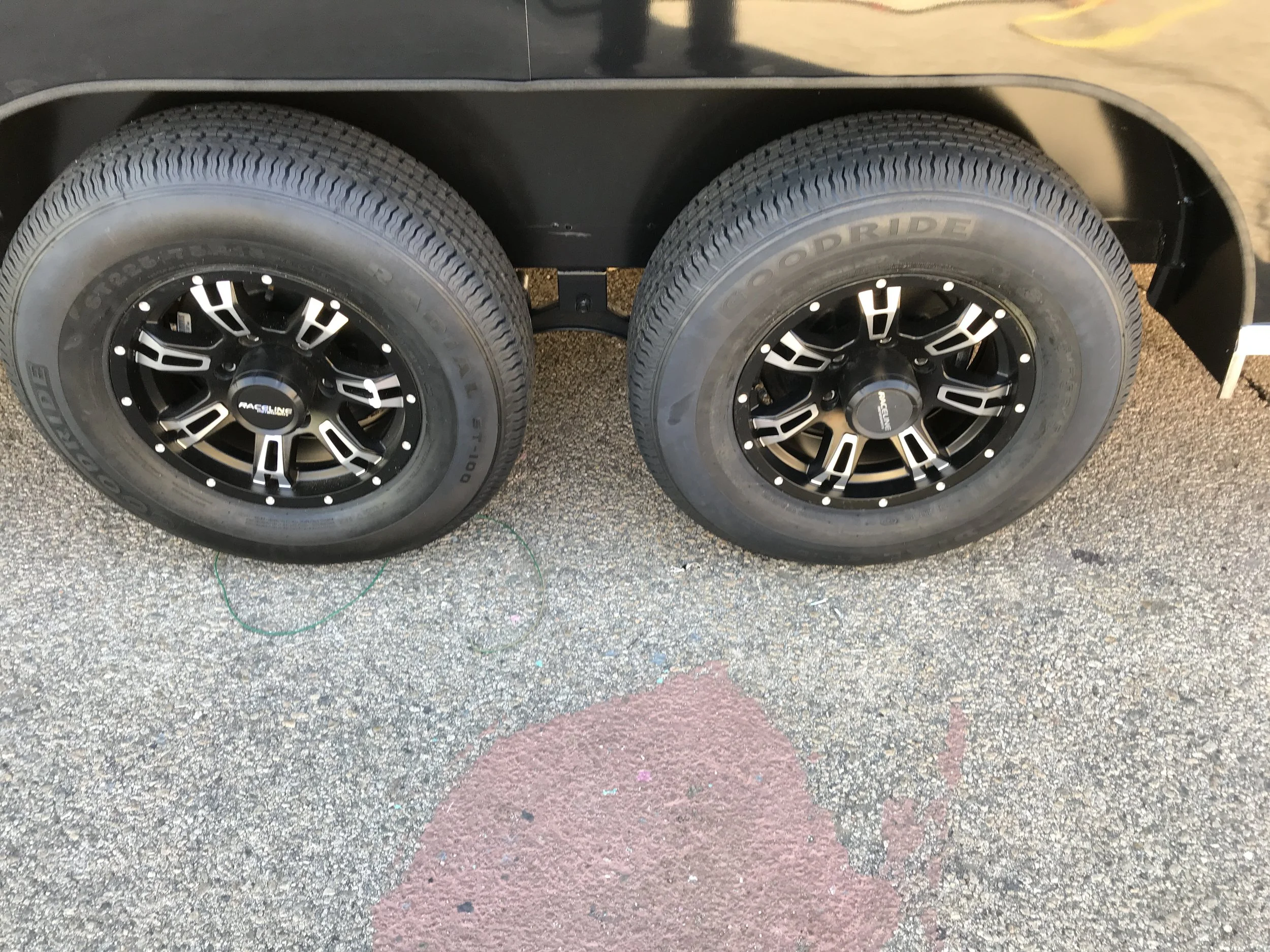

4 - 15” Raceline Wheels w/ 225/75/15 Radial tires
14 Exterior 2"(3 diode) round led Marker lights

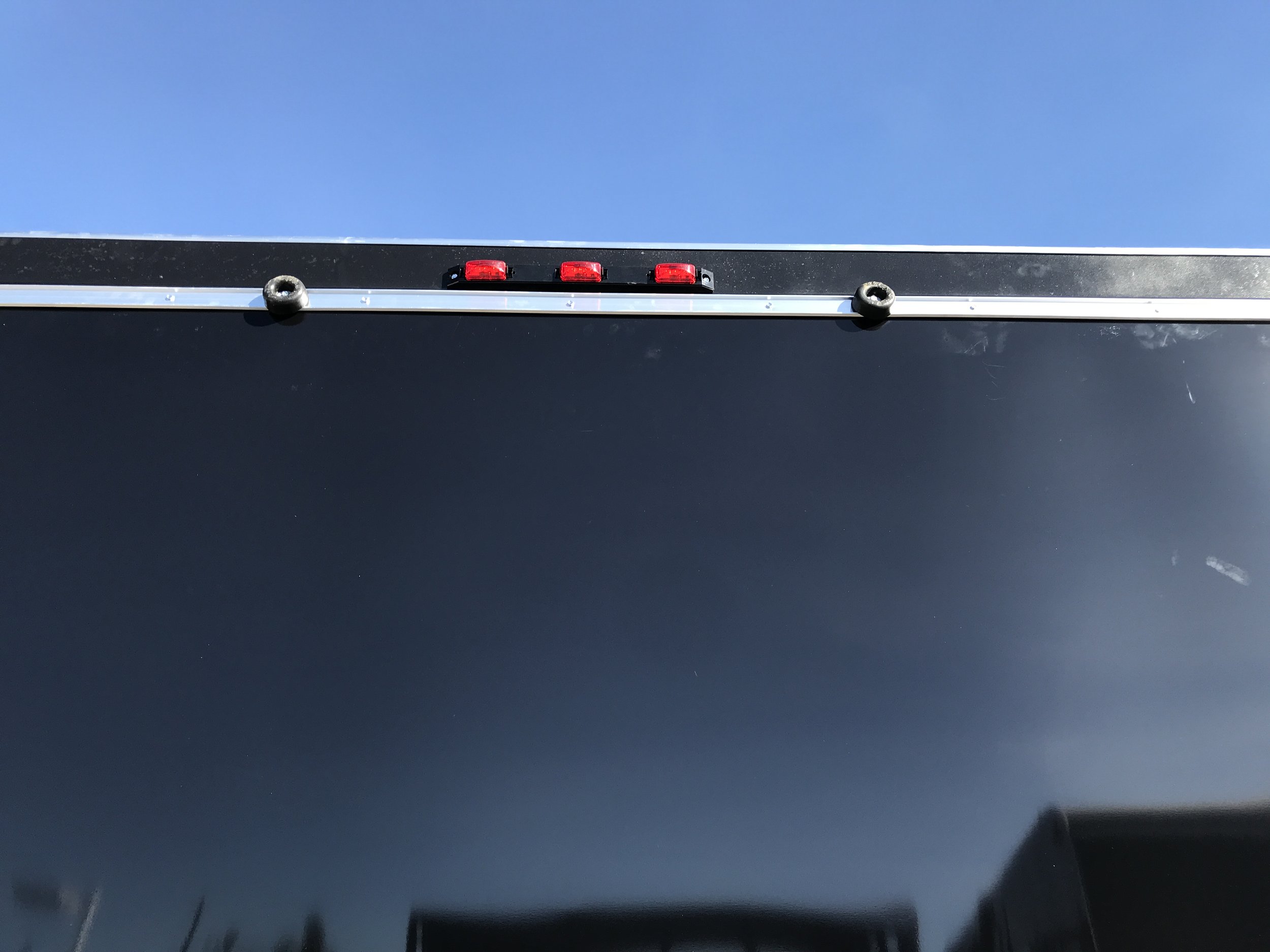

1 Rear (9diode) led identification light bar
4 Exterior 6" Oval flush-mounted Led lights
1 Led license plate light w bracket

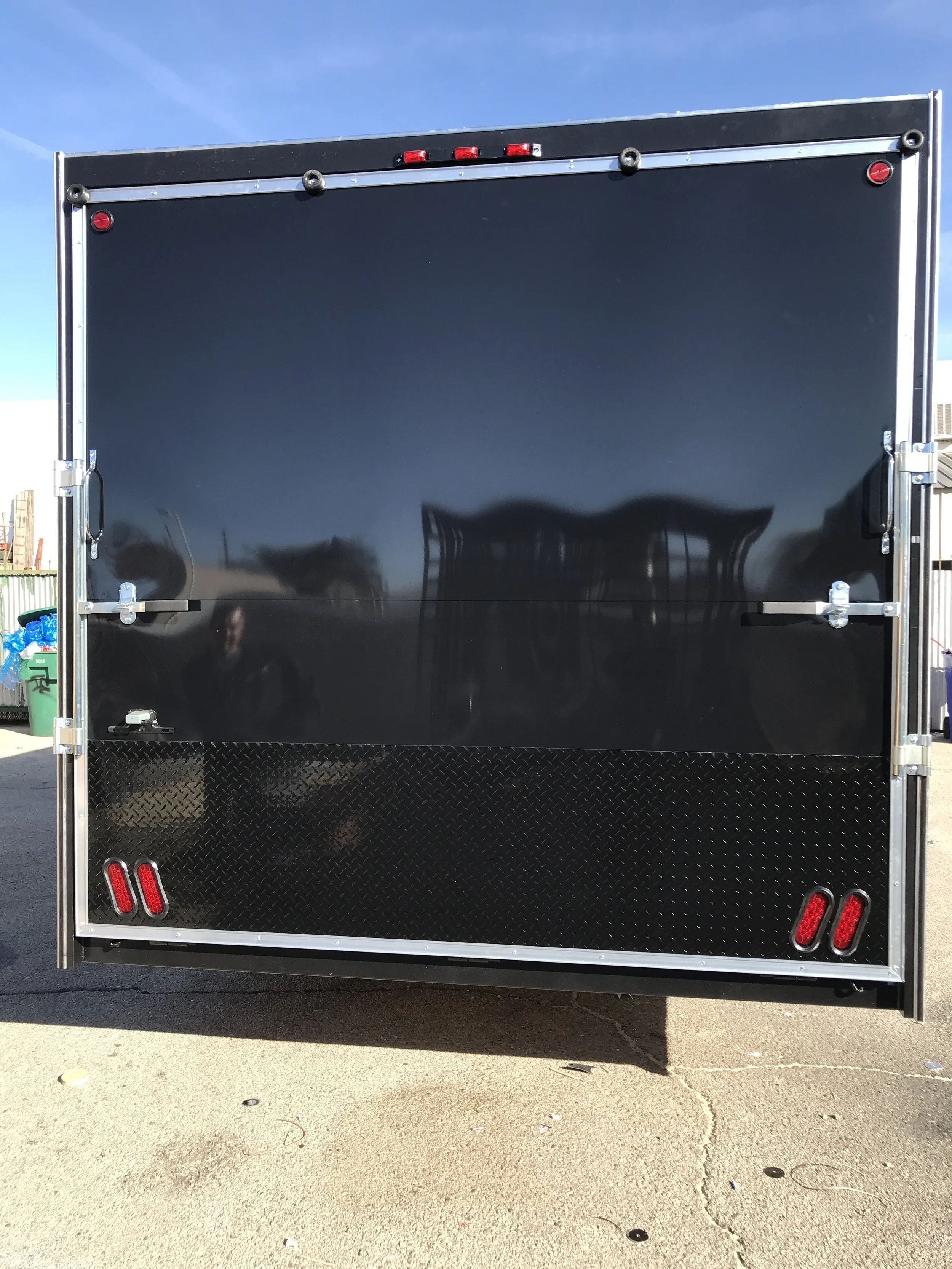

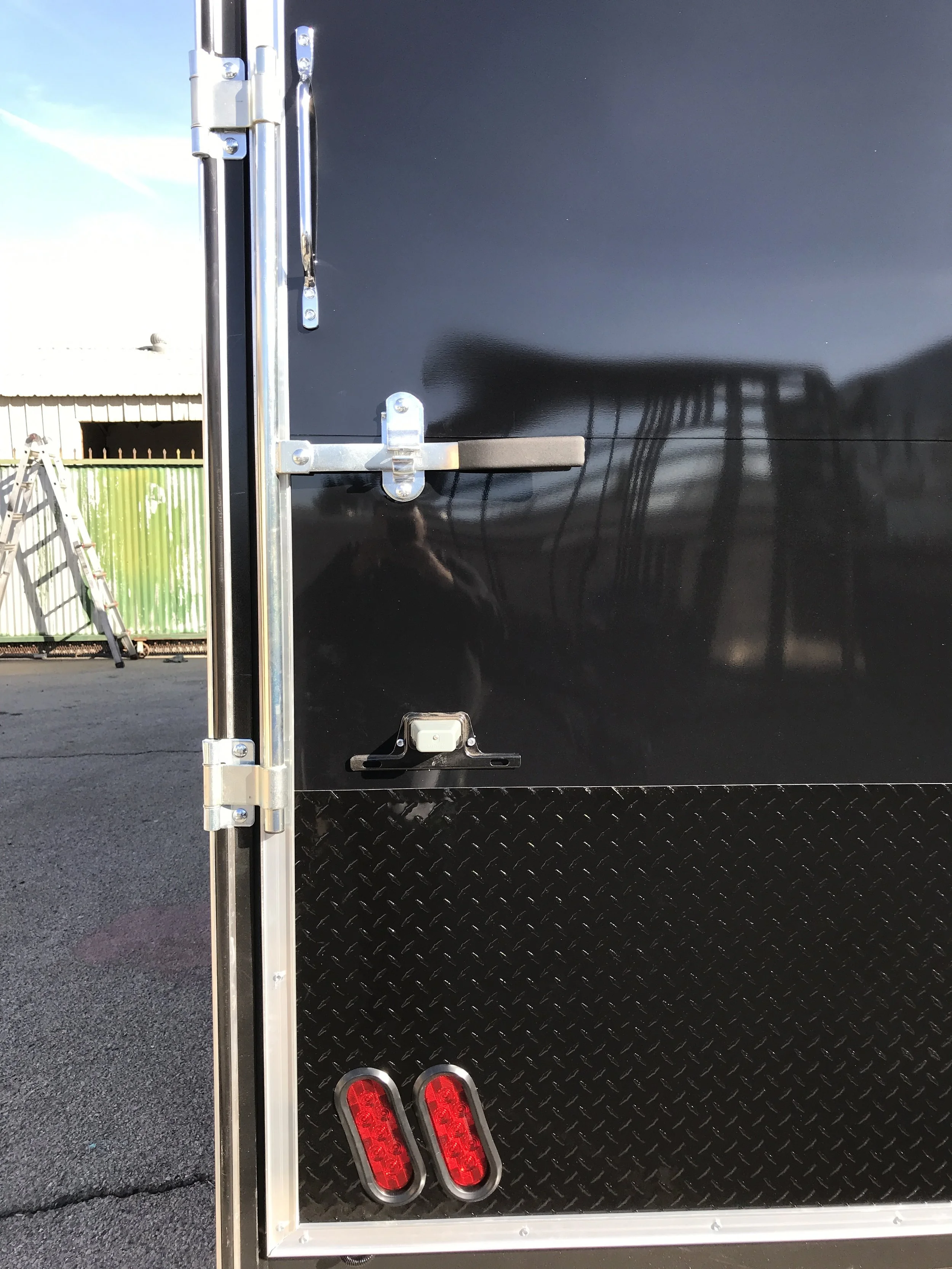

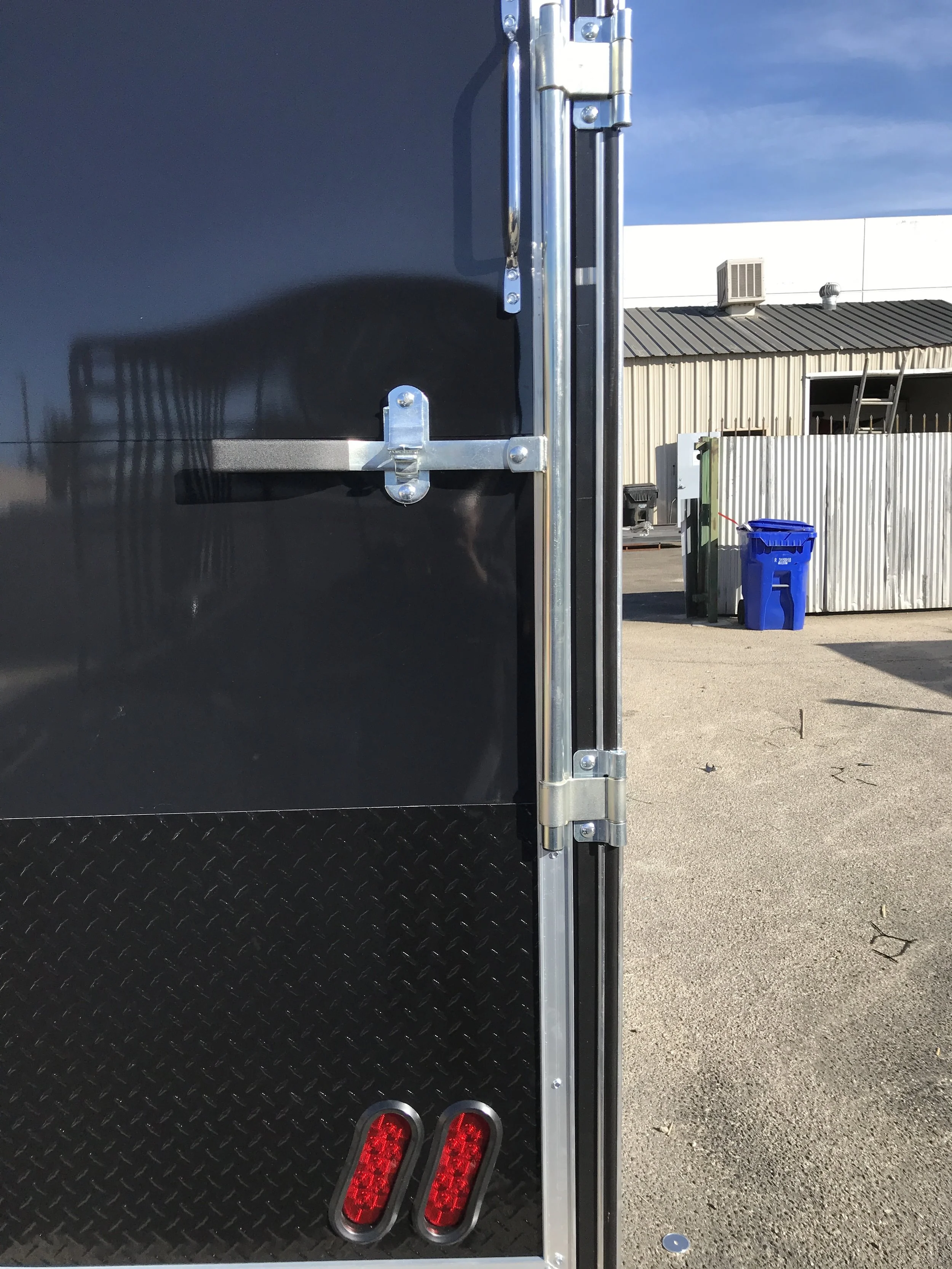

2 Ramp door bar locks
4 Ramp door bumper support
2 Ramp door grab handles
INTERIOR

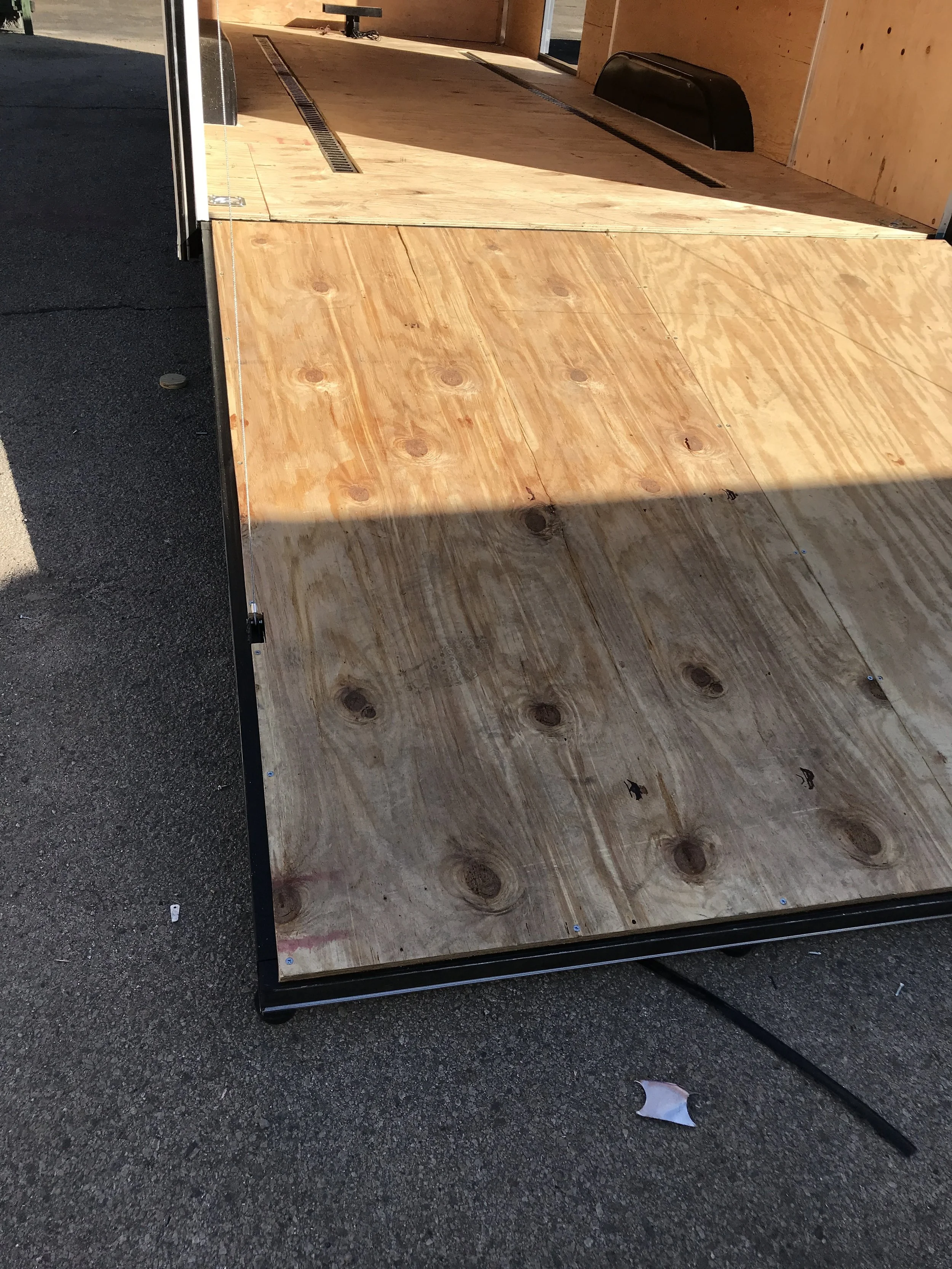

3/4" plywood flooring

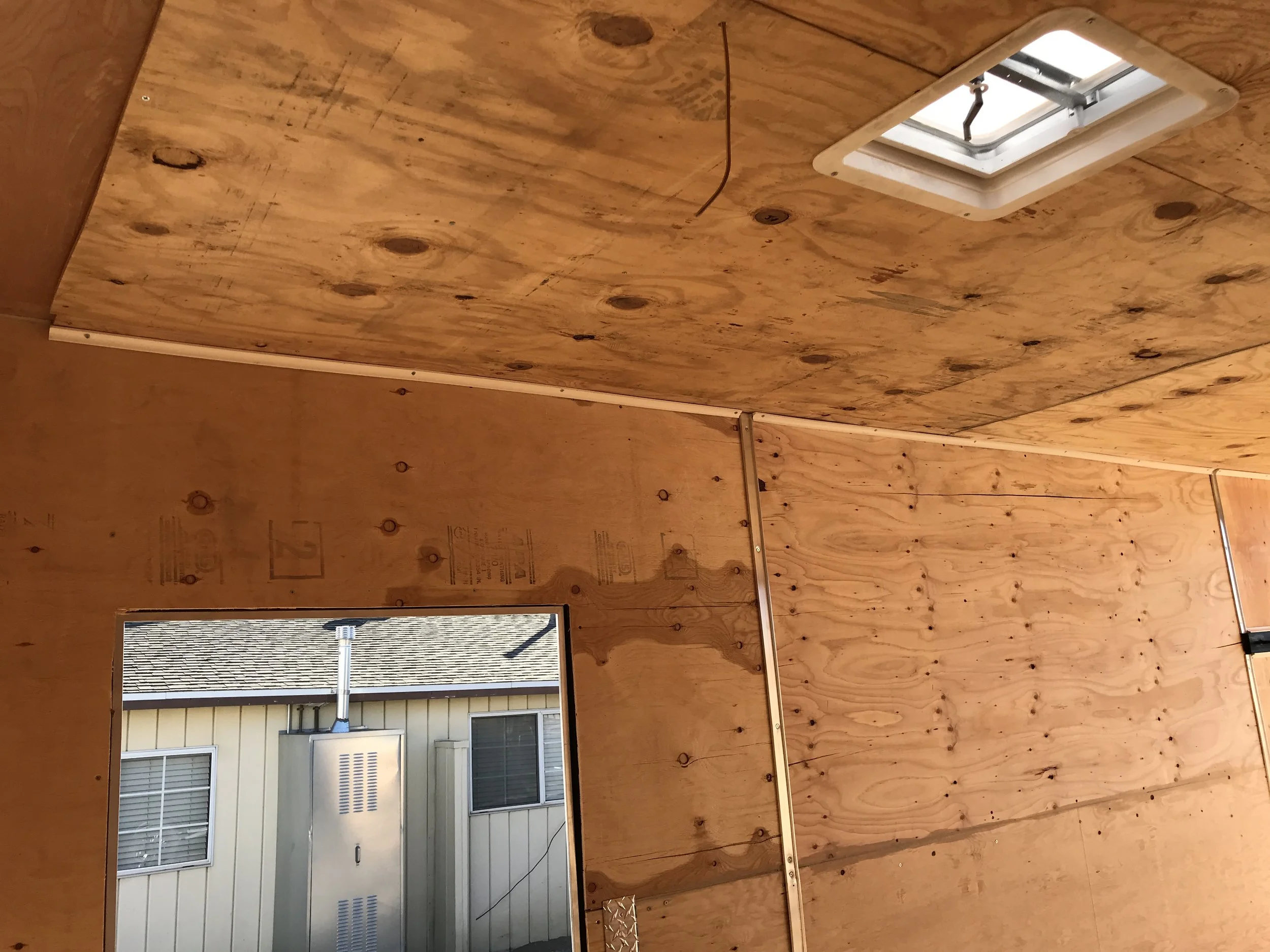

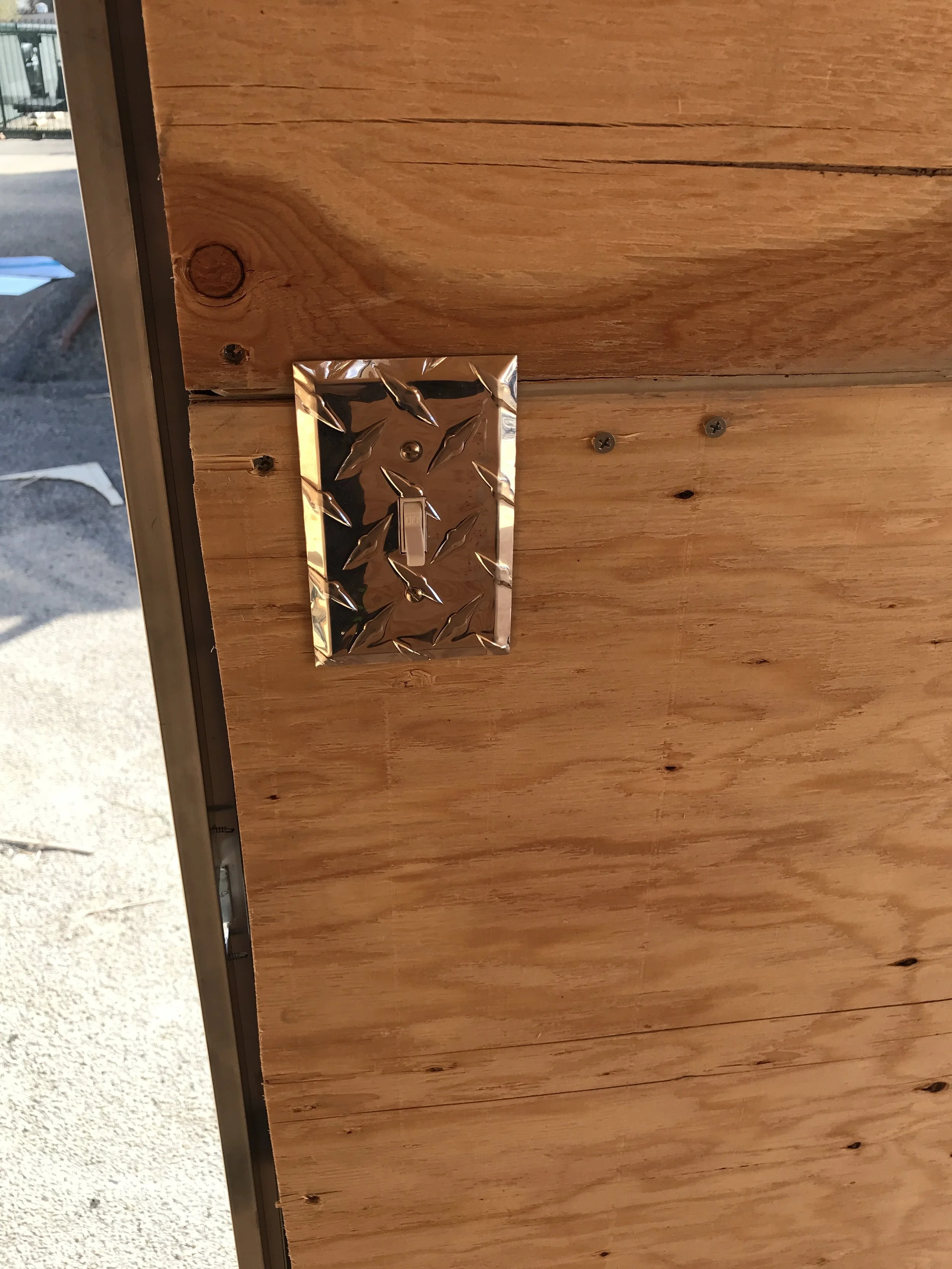

3/8" plywood walls (full walls and ceiling)

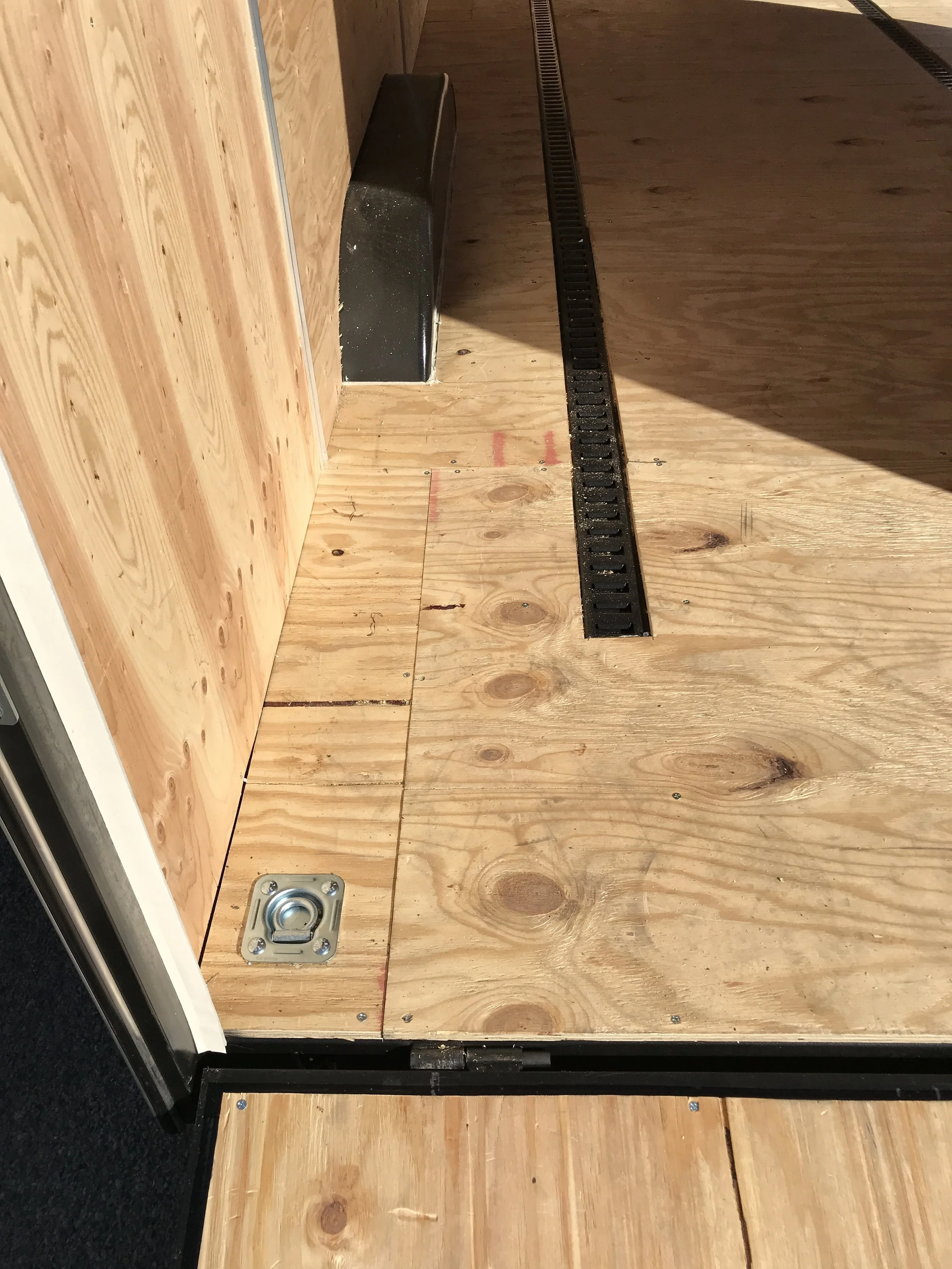

4 Standard flush-mounted d rings

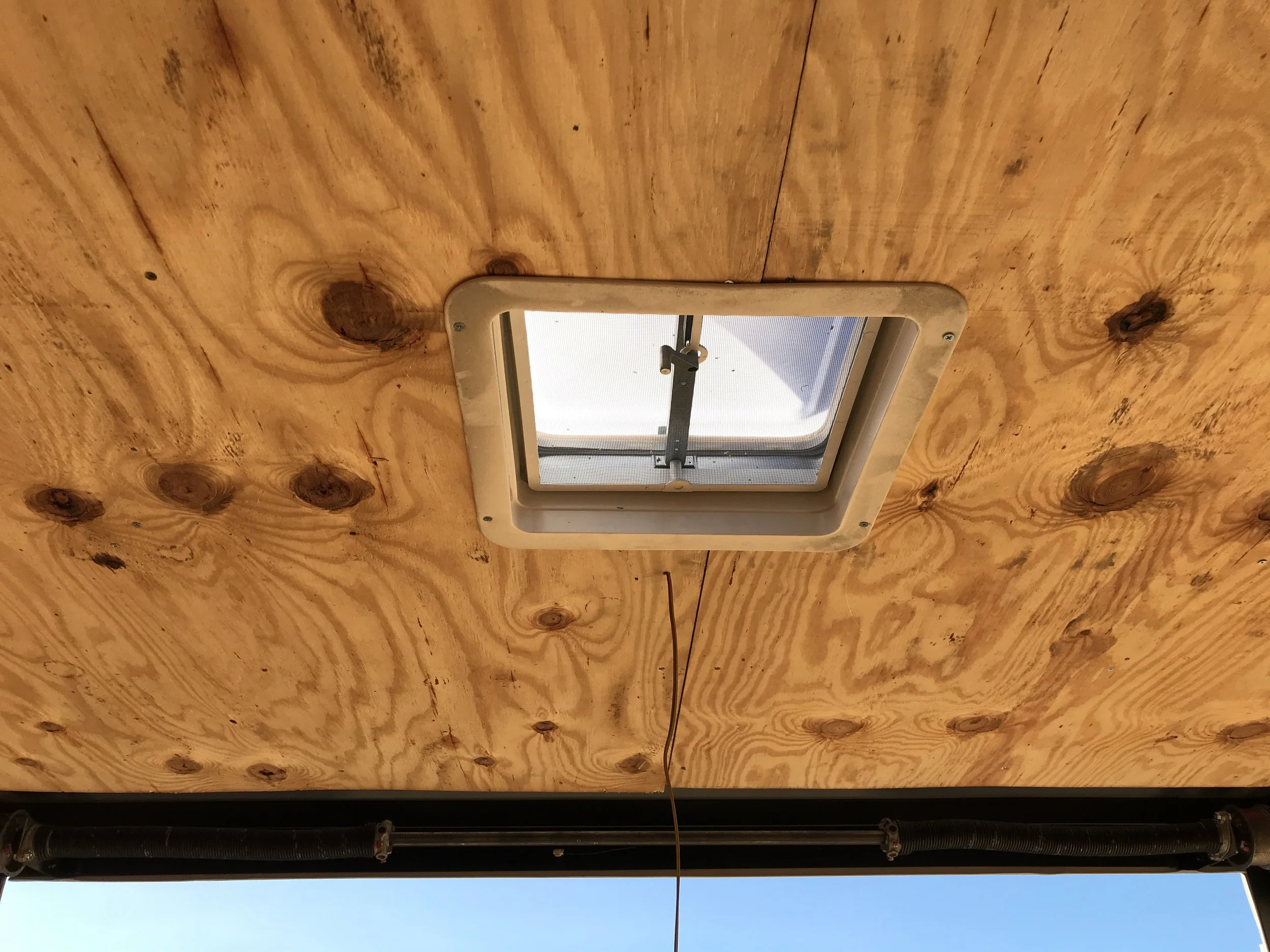

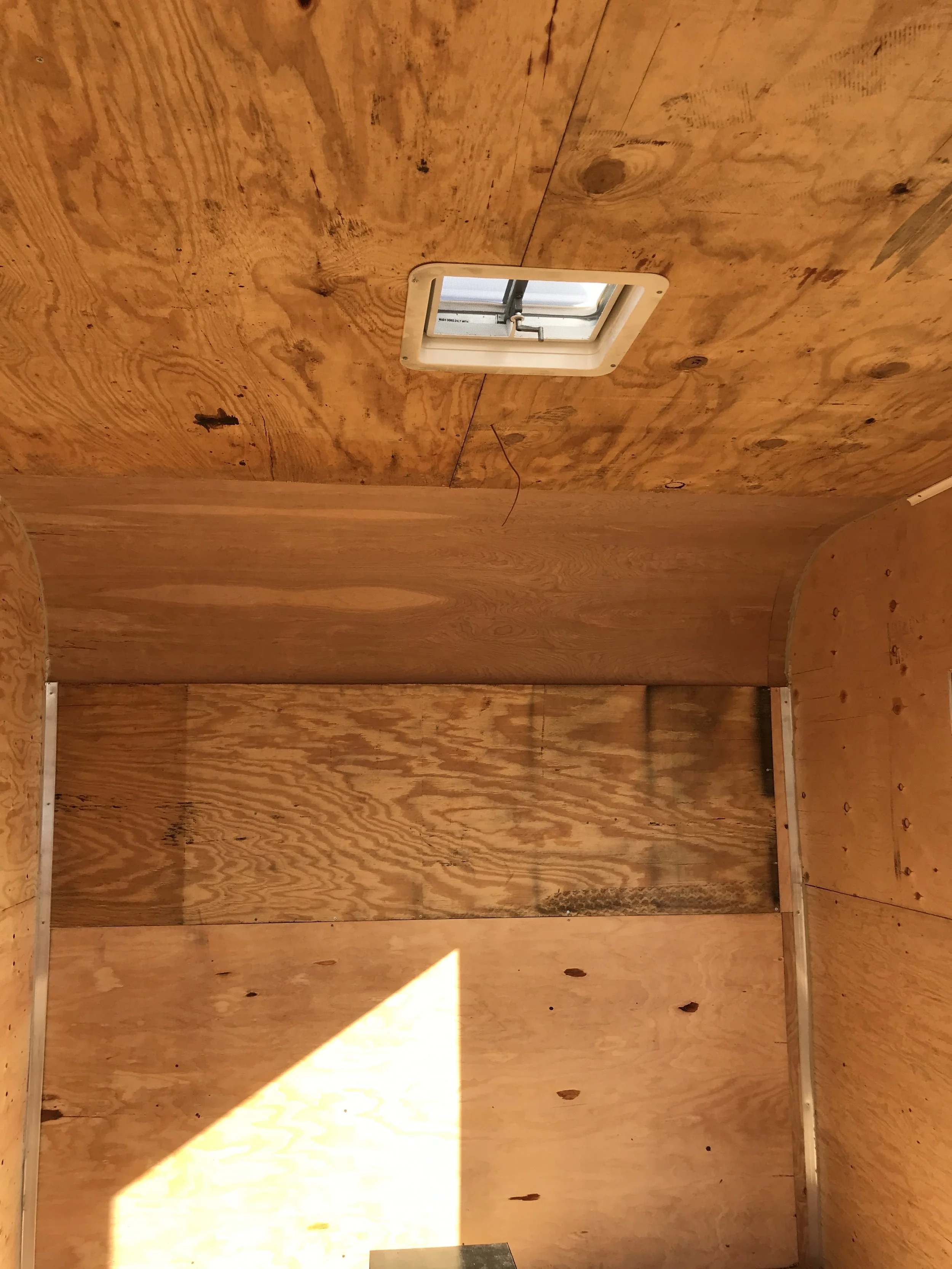

1 Manual 14"x14" roof vent
1 Interior touch led light 9" Oval 420 lumens

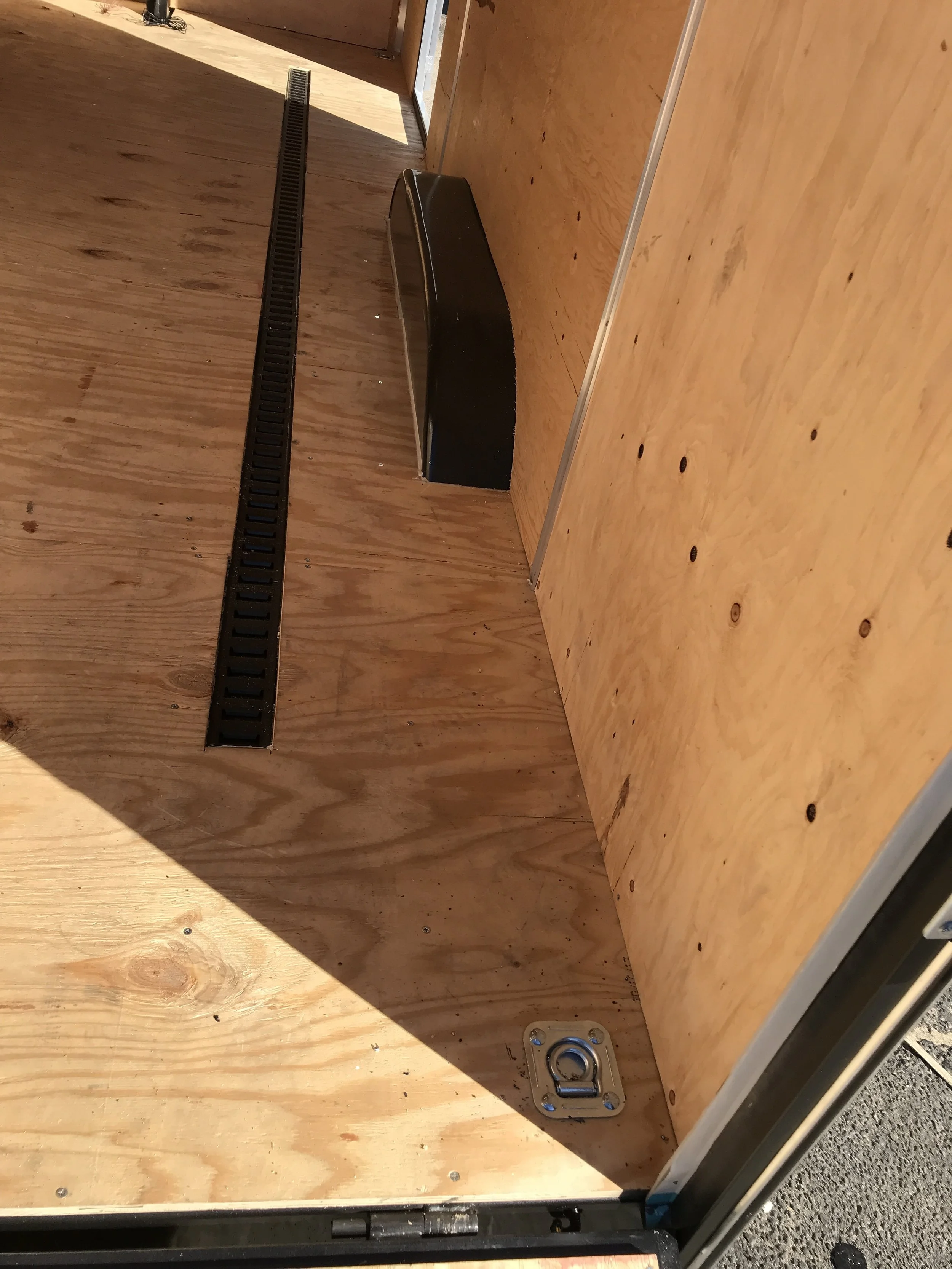

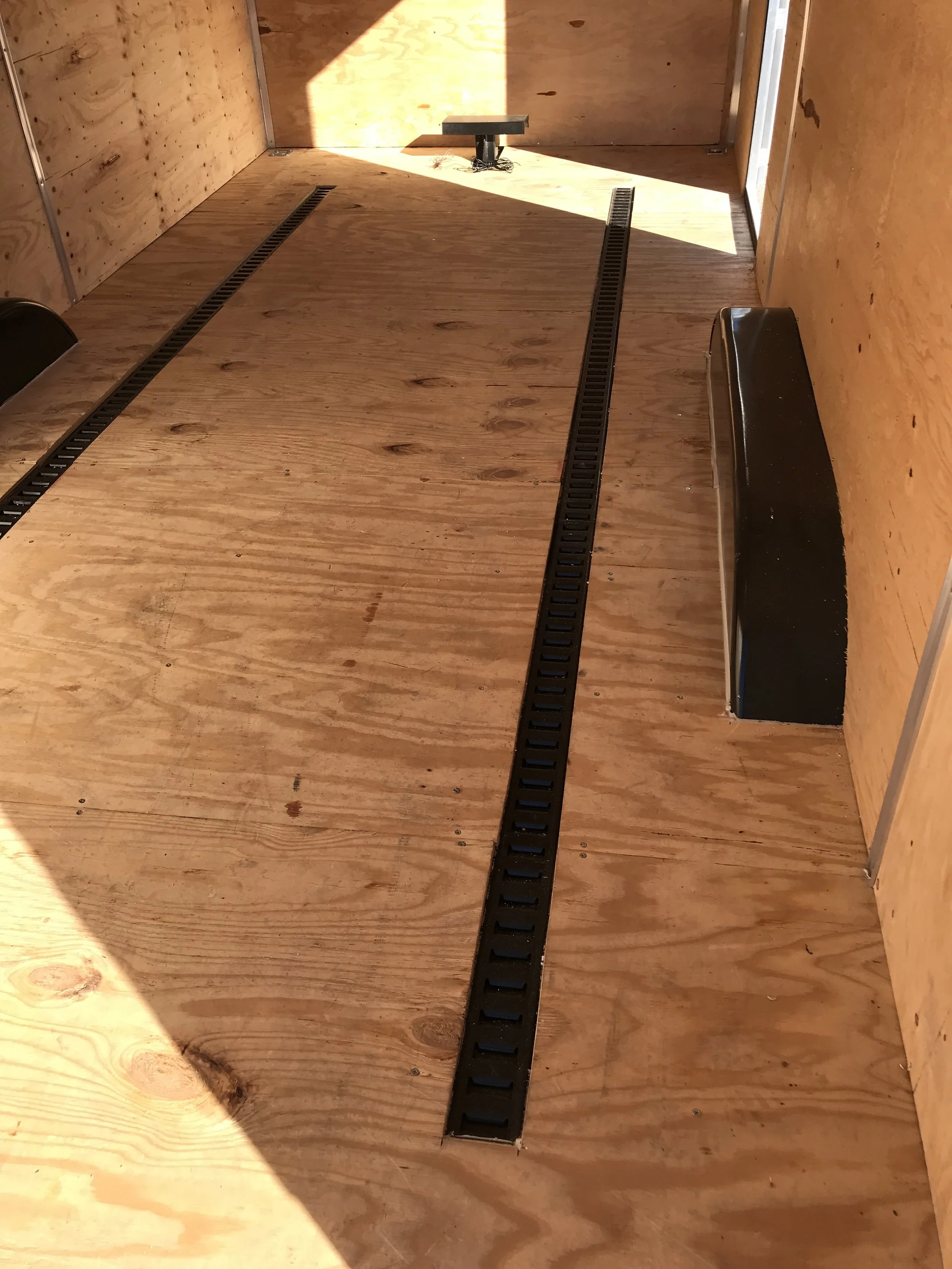

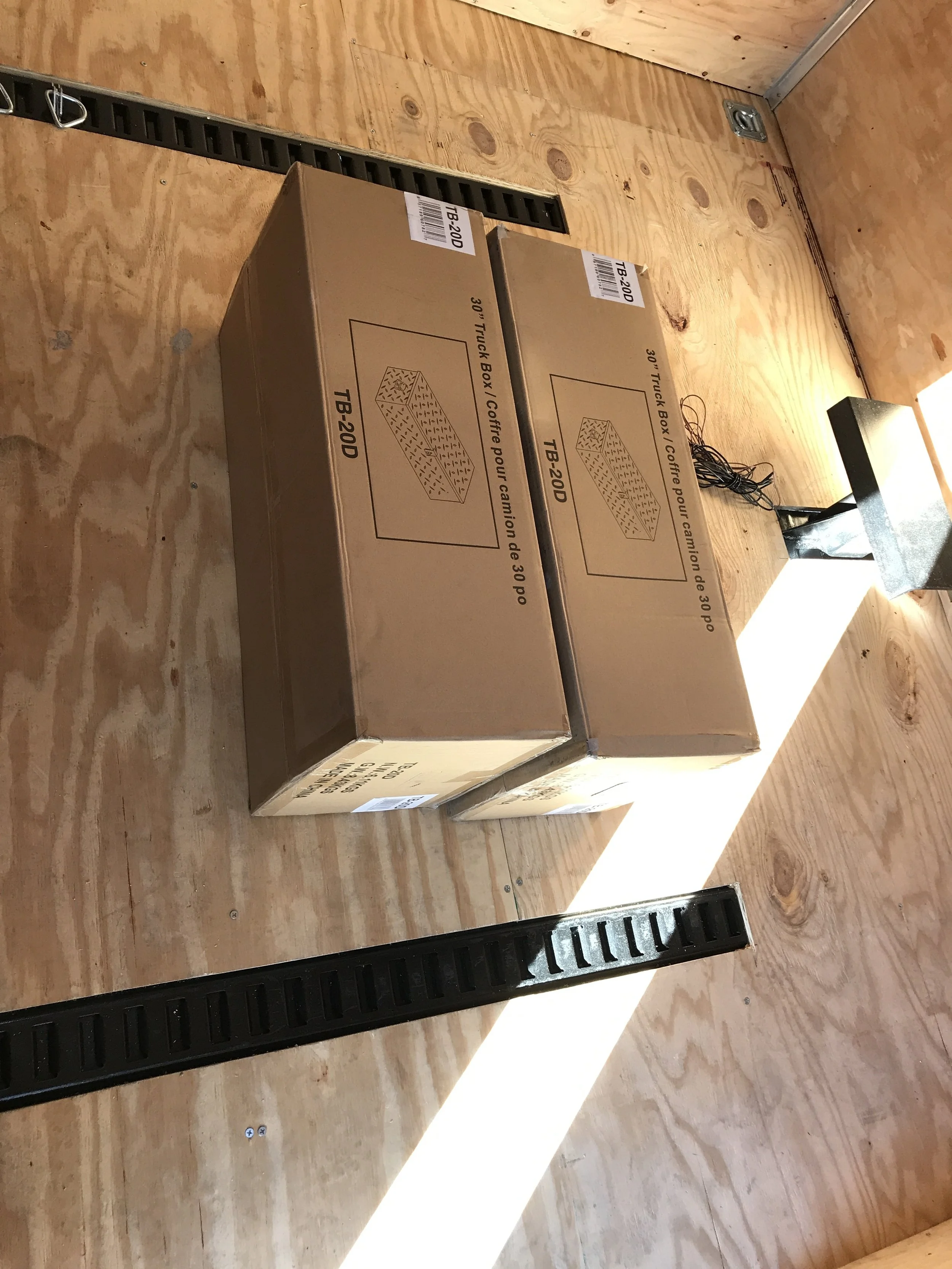

2 Pc E Track W 4 E Track D Rings 15ft

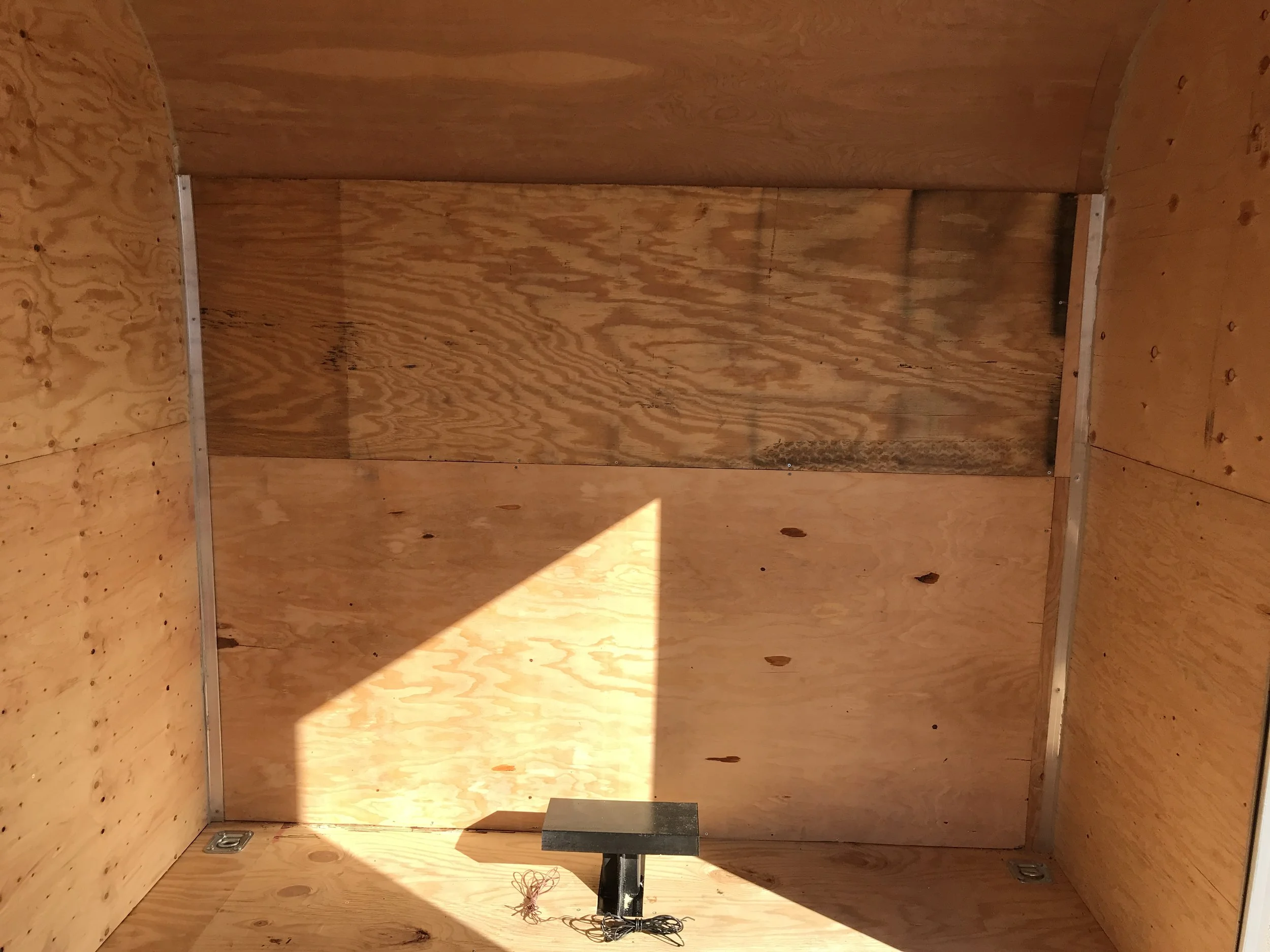

Fabricated Winch Mount Only
Inside width 99"(wall to wall)
Floor to Ceiling height 94"
Ramp Opening height 90"
Ramp Opening Width 95”
Overall length 24’
Trailer weight 3,200lb
12,000lb GVWR
24 Month Warranty on Welds
60 Month Warranty on axles
NATM CERTIFIED
Made in the USA
