8.5'x18'x7'4"w dove tail ENCLOSED
8.5'x18'x7'4"w dove tail ENCLOSED
EXTERIOR
4ft' channel#5 tongue wrapped on frame

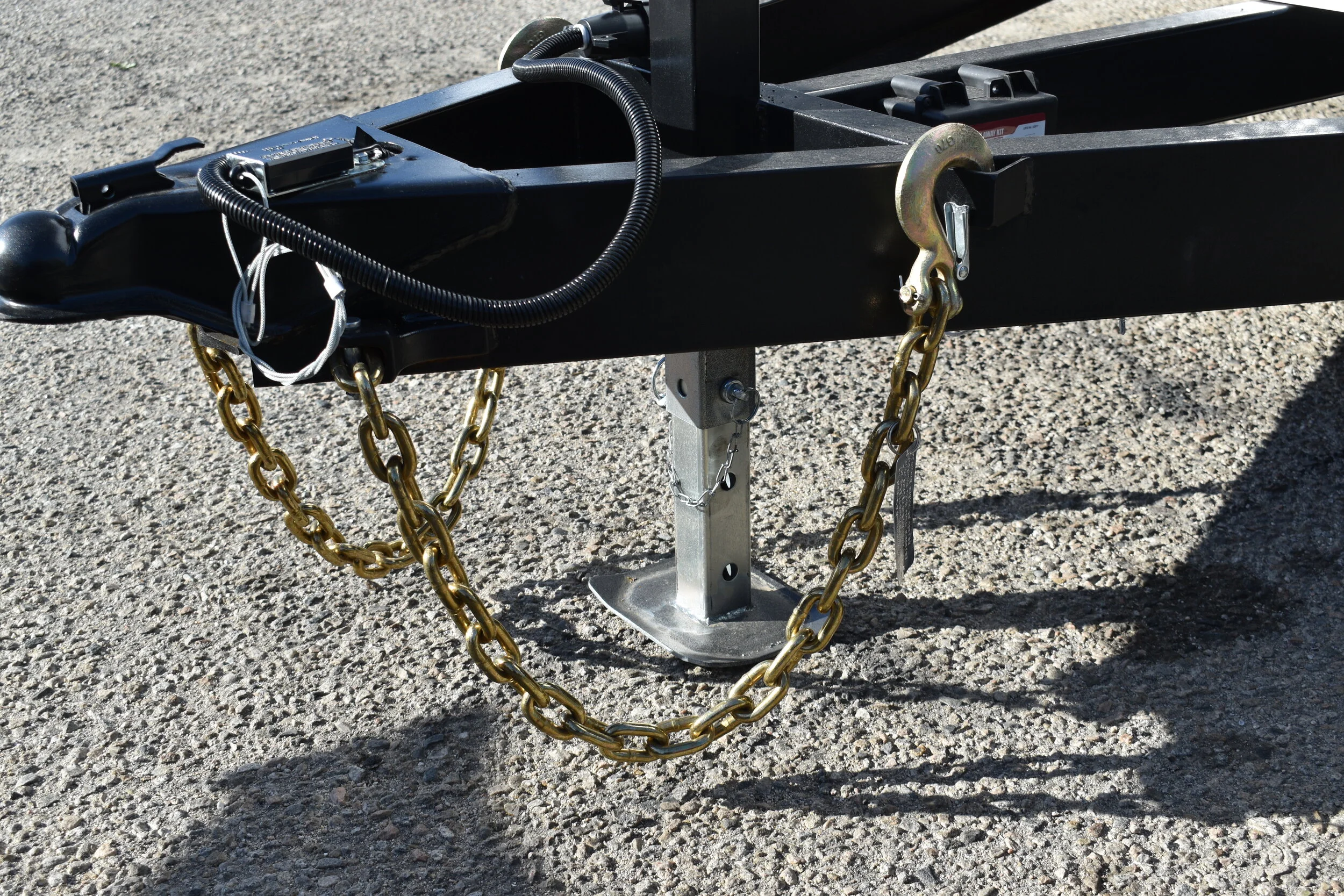

2 5/16" A-frame coupler rated @ 14,000lb
7 way round RV plug

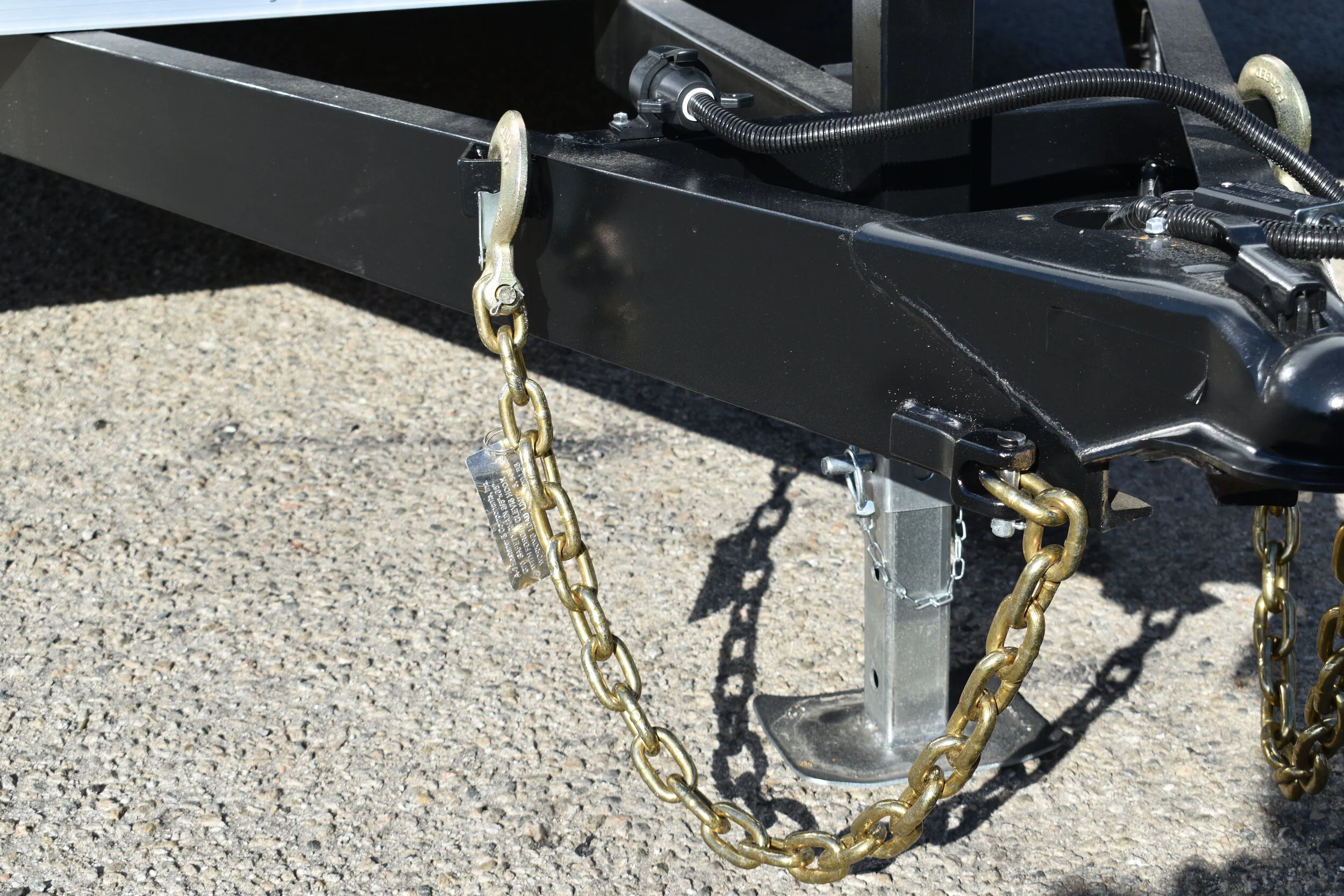

2 detachable class 4 chains 3/8 35” clevis hook w latch rated @16,000lb each
8,000lb front tongue drop leg square jack
Emergency Break away kit
16” on center 1”x2” wall studs /2”x2” on roof cross members

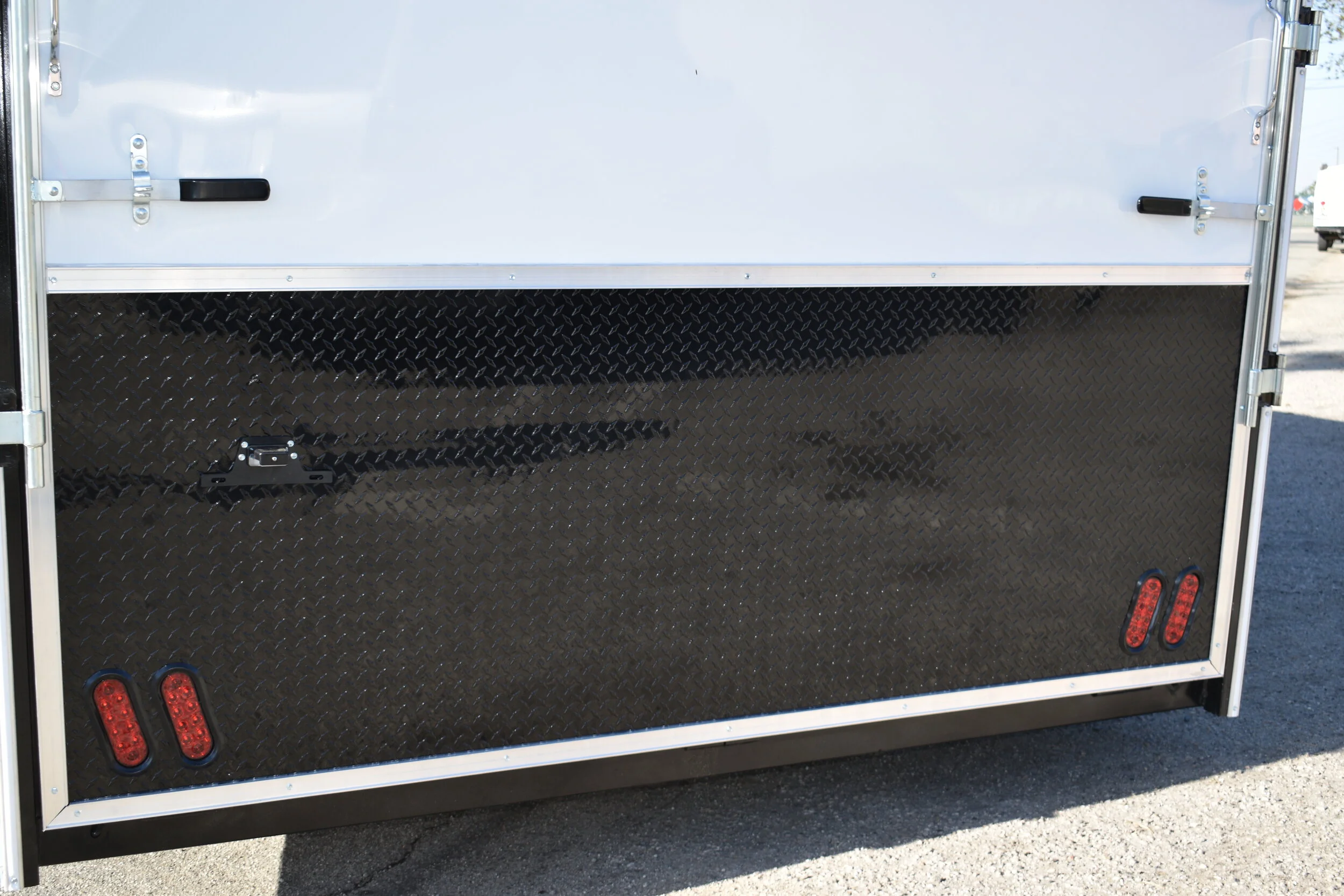

Diamond plate front/rear rock guard

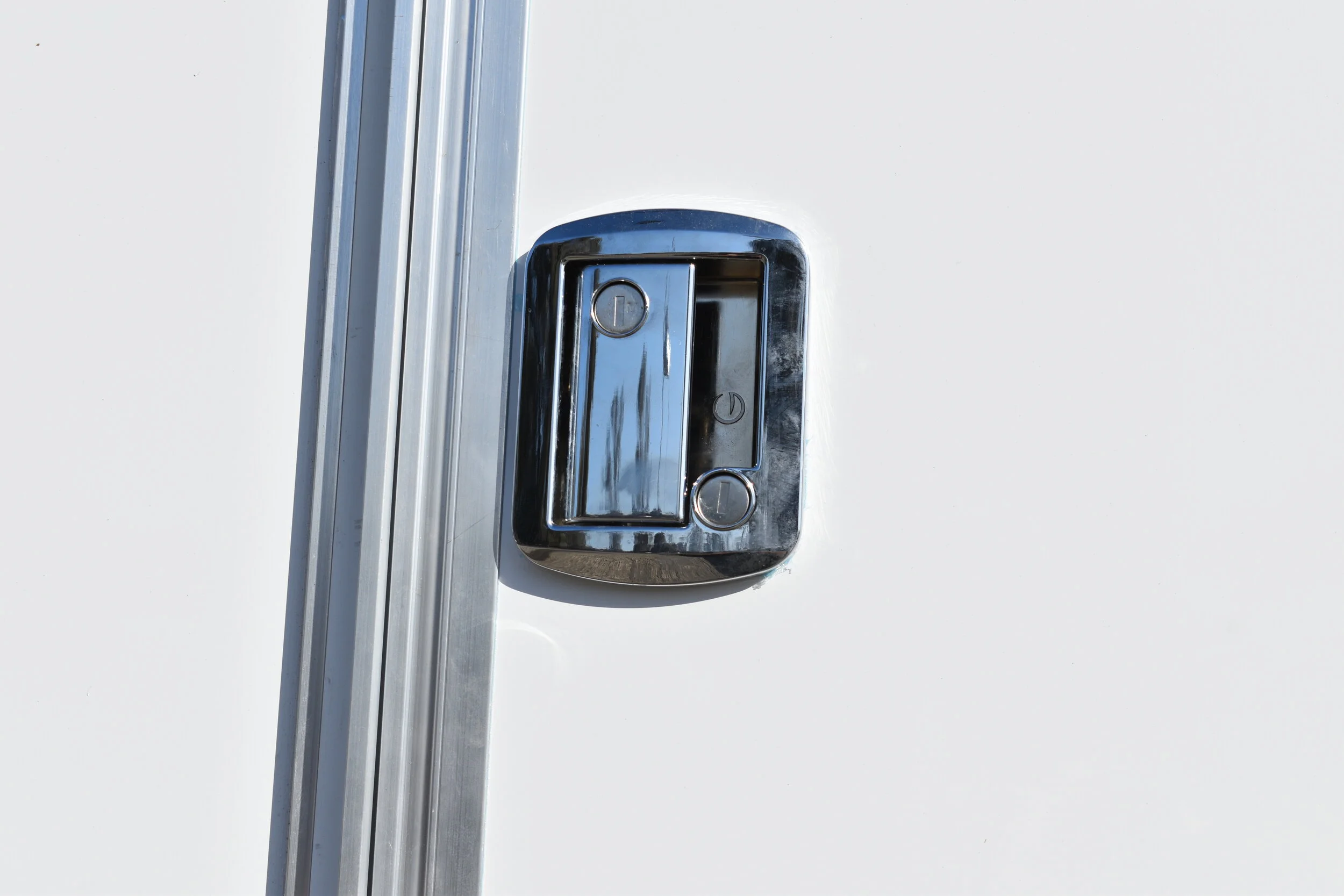

1 Passenger Side RV style door 36"x72" w 2 lockable keys & door holder

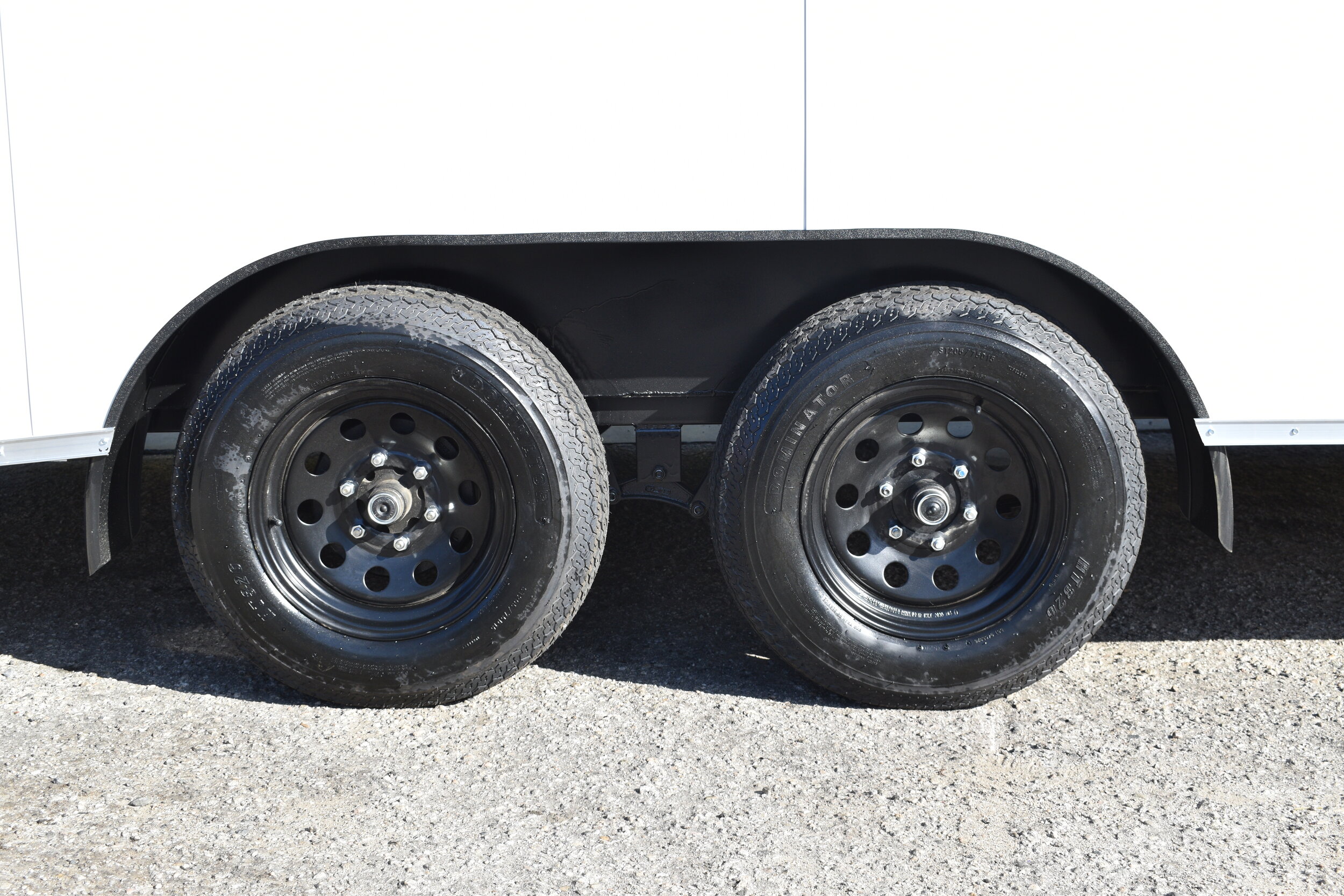

2 double eye leaf spring axles rated @3,500lb each (1 electric brake)
205/75/15 Bias tires black

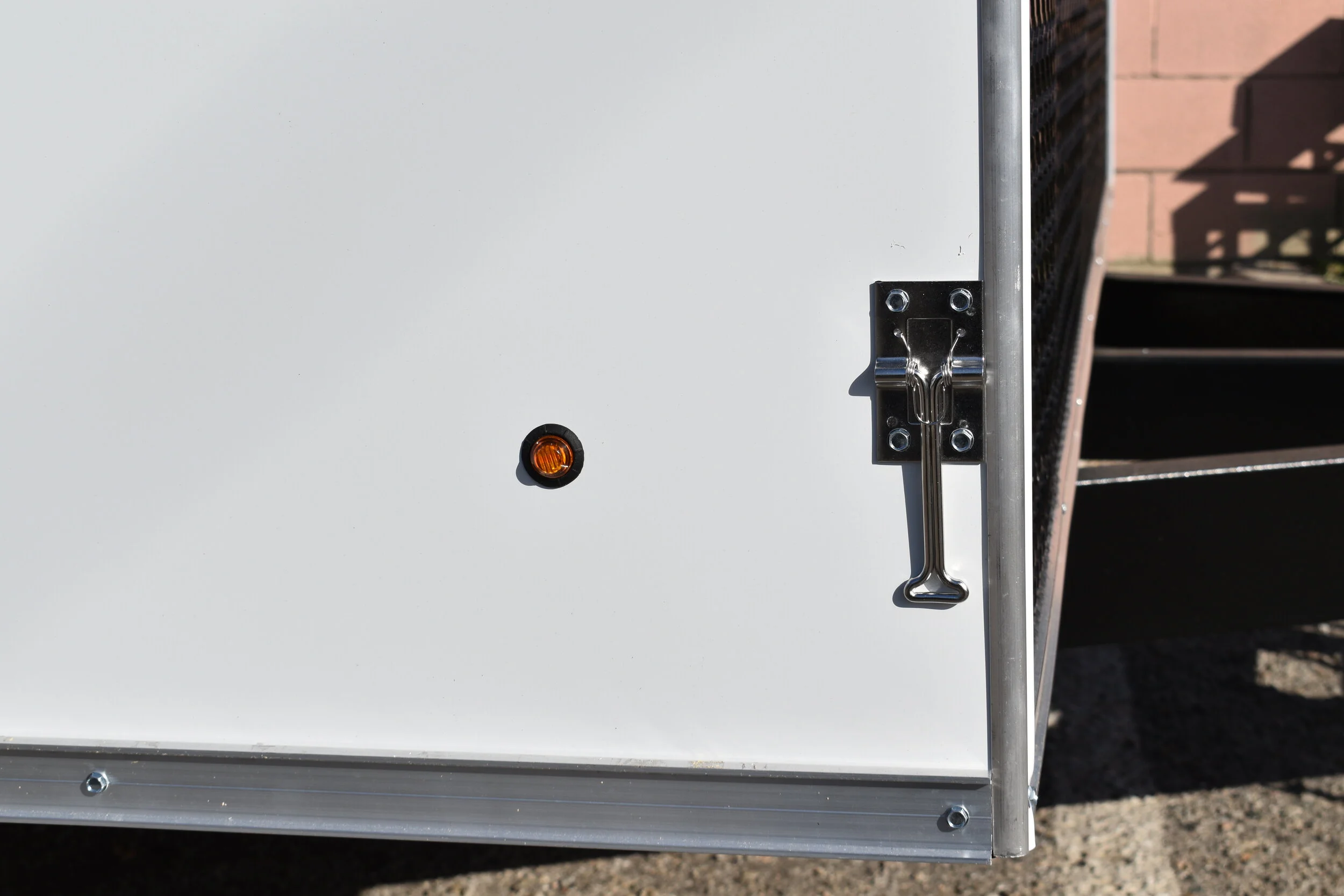

15 Exterior 2"(3 diode) round led Marker lights

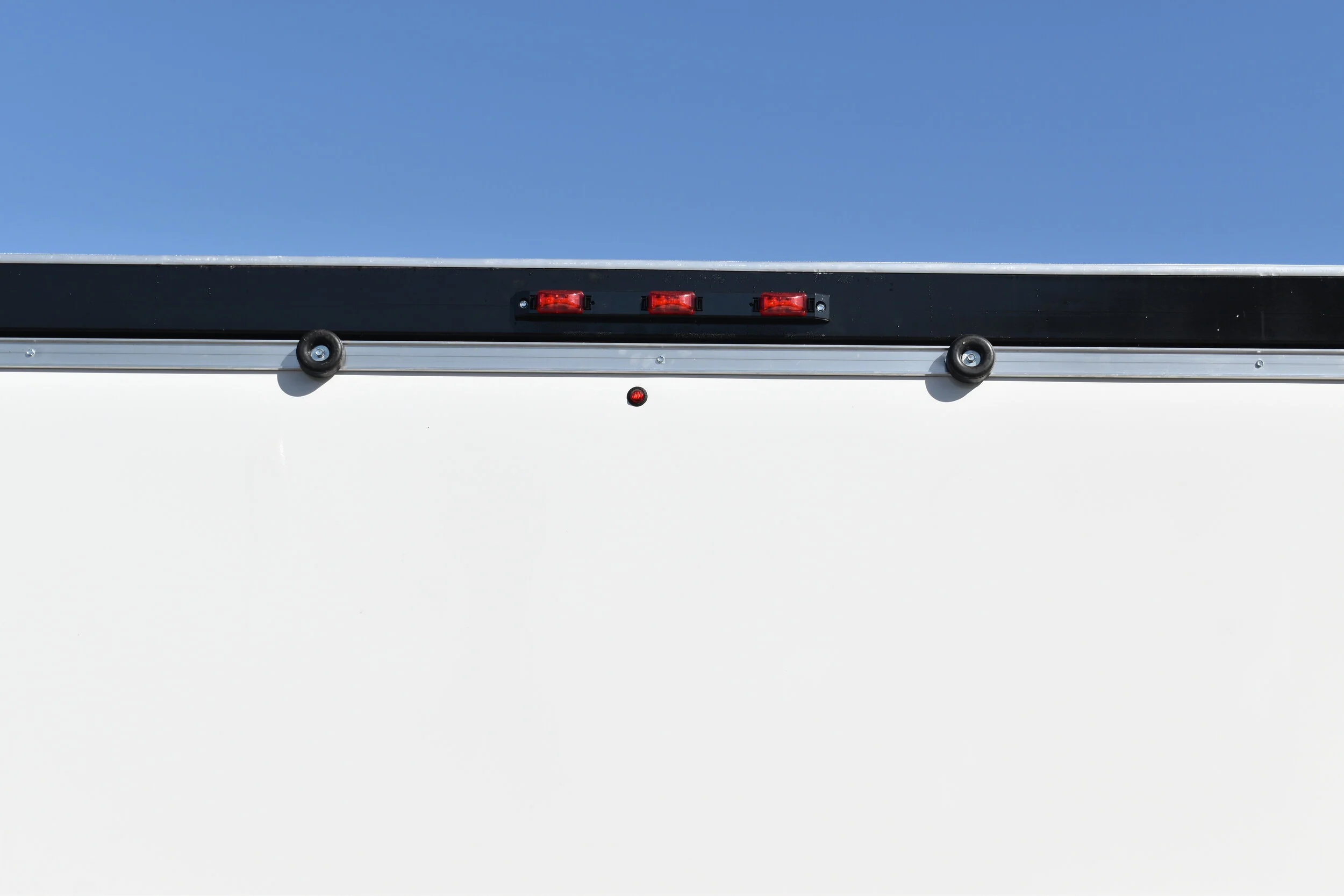

1 Rear (9diode) led identification light bar

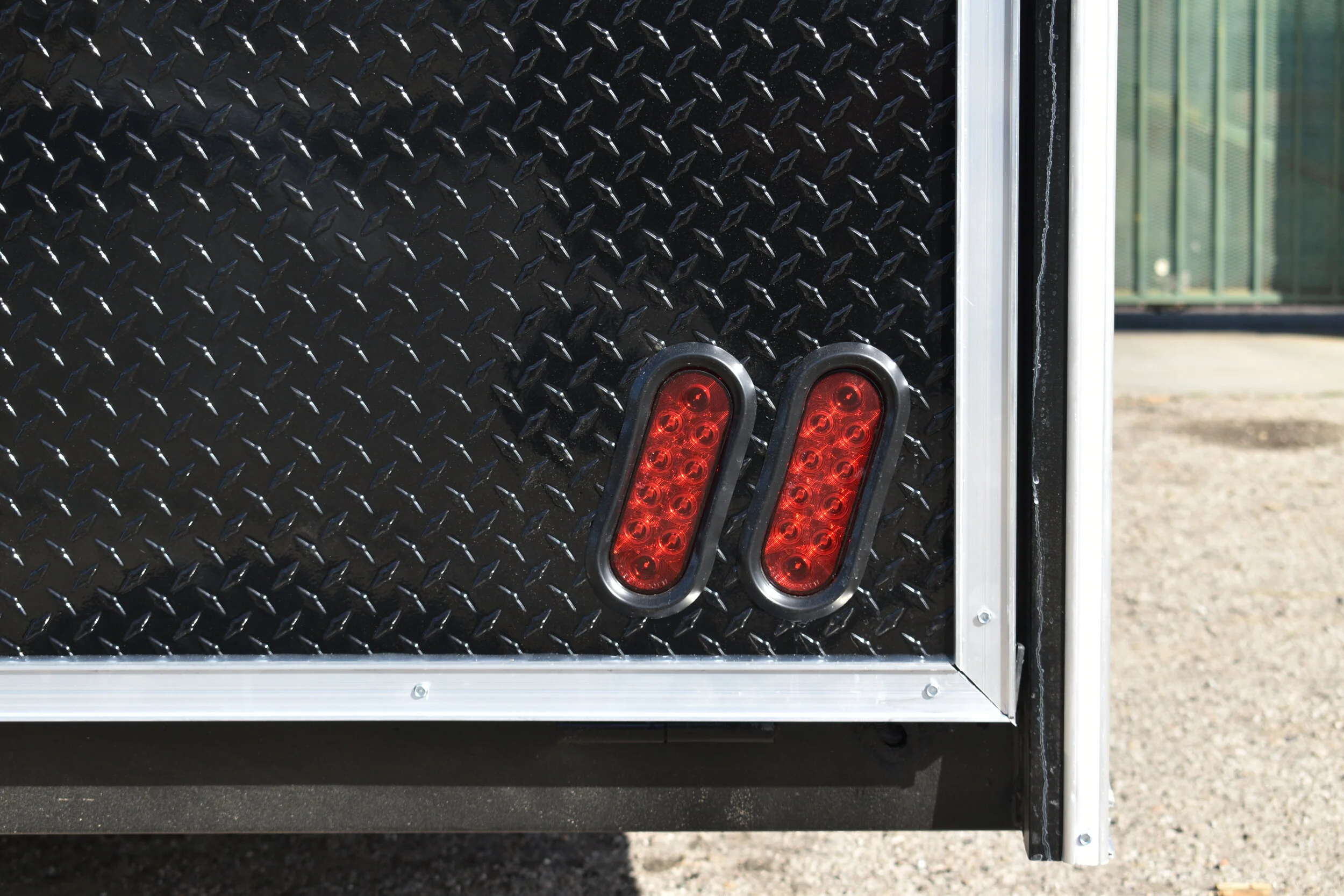

4 Exterior 6" Oval flush-mounted Led lights
1 Led license plate light w bracket

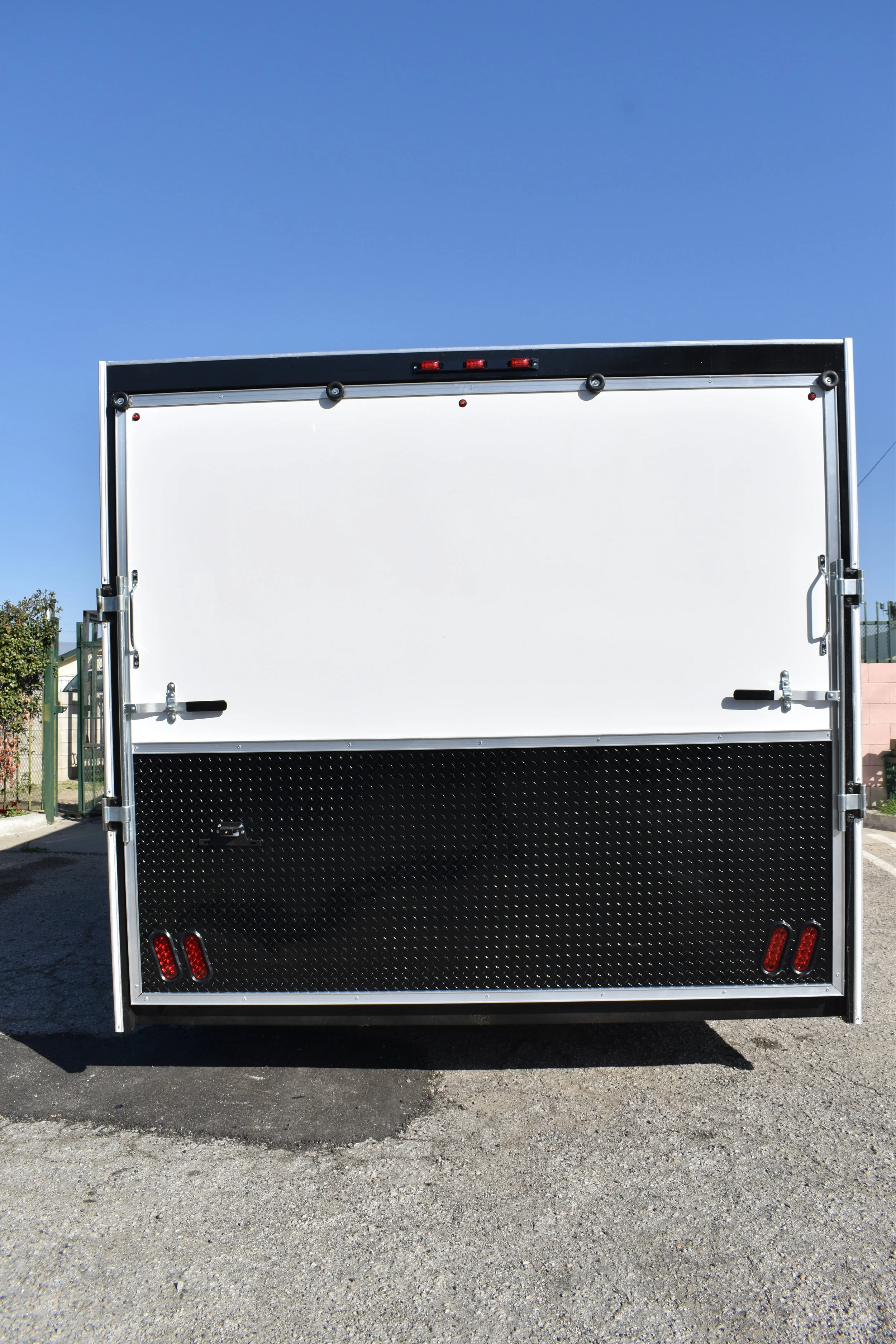

2 Ramp door bar locks
4 Ramp door bumper support
2 Ramp door grab handles
INTERIOR

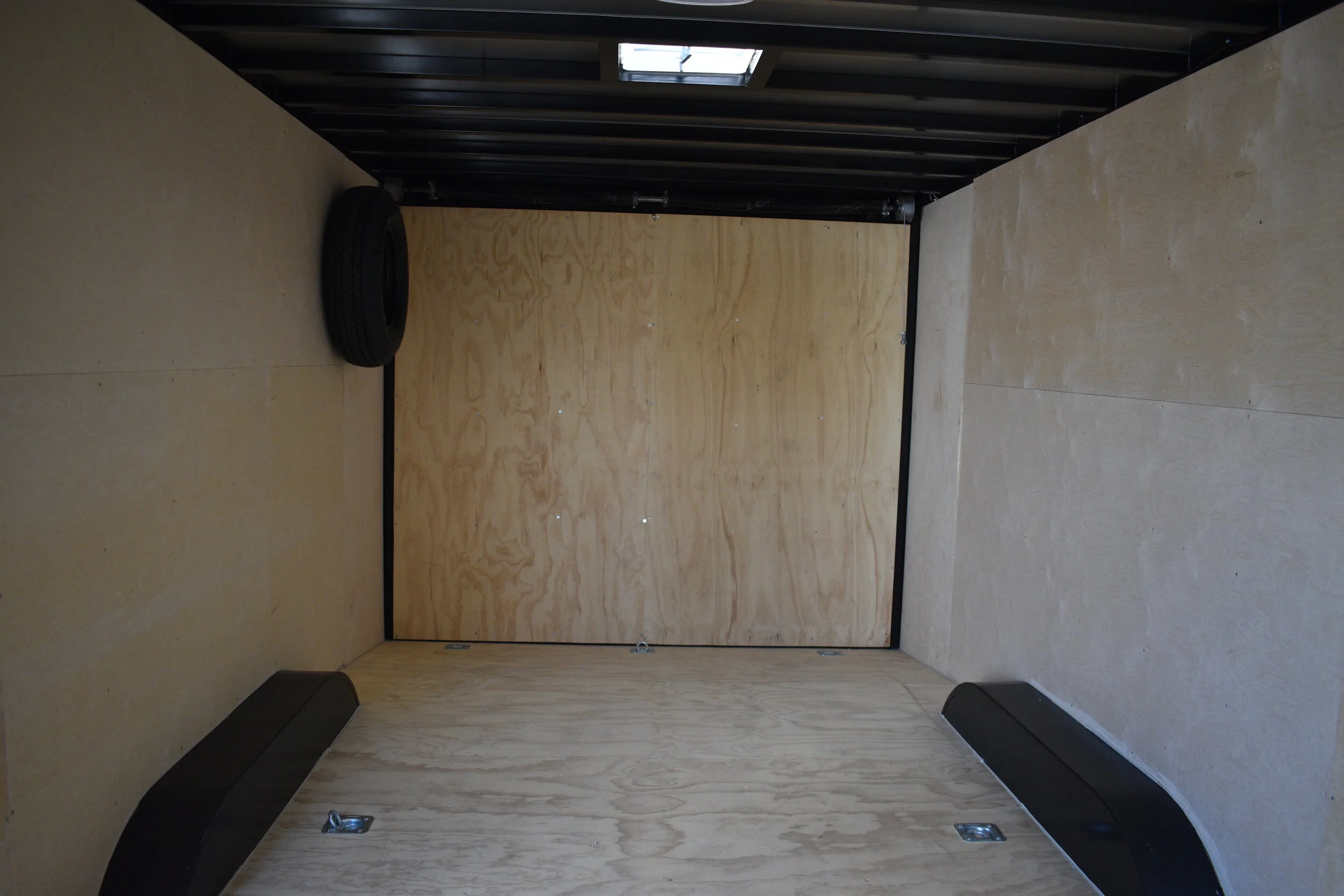

3/4" plywood flooring
3/8" plywood walls
Expose ceiling
4 Standard flush-mounted d rings
1 Manual 14"x14" roof vent
1 Interior touch led light 9" Oval 420 lumens

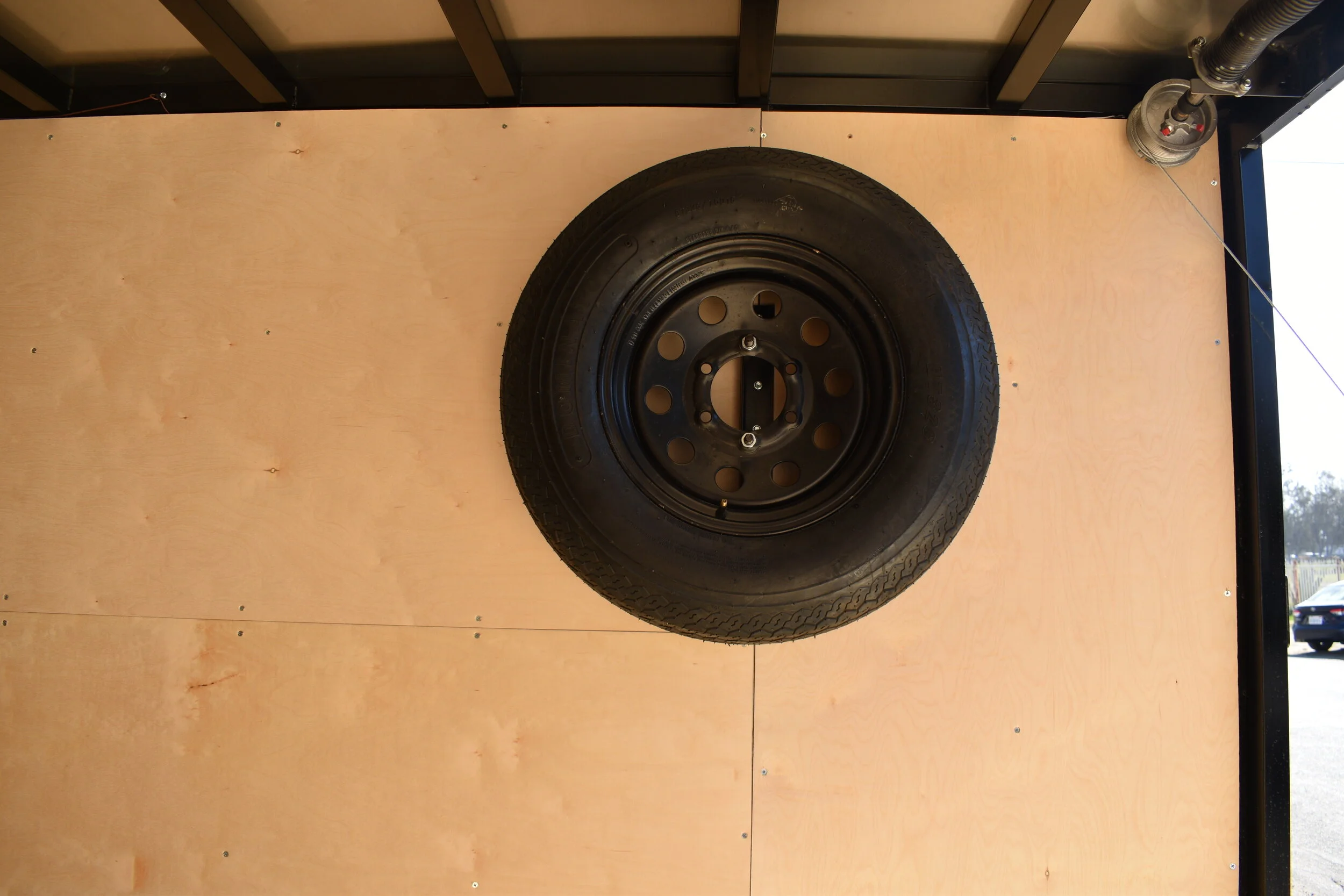

Spare Wheel W Mount 205/75/15 bias
Inside width: 99"
Floor to Ceiling height: 84"
Ramp Opening height: 80"
Ramp Opening Width: 95”
Overall length 22’
Trailer weight 3,200lb
7,000lb GVWR
24 Month Warranty on Welds
60 Month Warranty on Axles
NATM CERTIFIED
Made in the USA
ALL PRICES SUBJECT TO CHANGE DUE TO MATERIAL INCREASES
