EXTERIOR

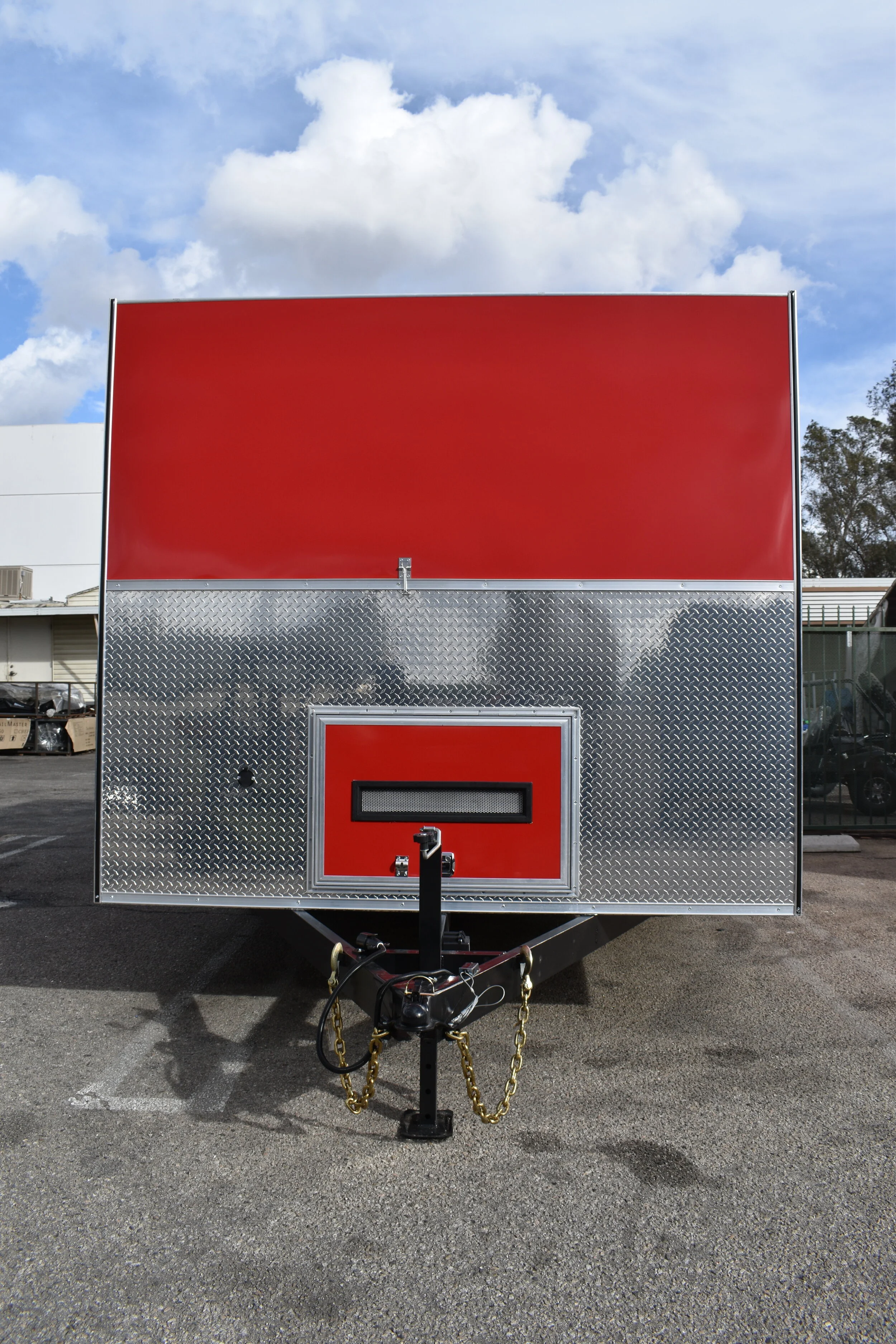

• 4ft’ Channel #5 Tongue Wrapped On Frame

• Diamond Plate On Tongue

• 2 5/16" A-frame coupler rated @ 14,000lb

• 7,000lb heavy-duty square drop leg jack

• 1- 7 way round RV plug

• 2 Detachable Class 4 Chains 3/8 35” Clevis Hook W/ Latch Rated @ 16,000 Each

• Emergency Breakaway Kit

• 16” On Center 1”x2” Wall Studs —- 2”x2” On Roof Cross Members

• Diamond Plate Front/Rear Rock Guard

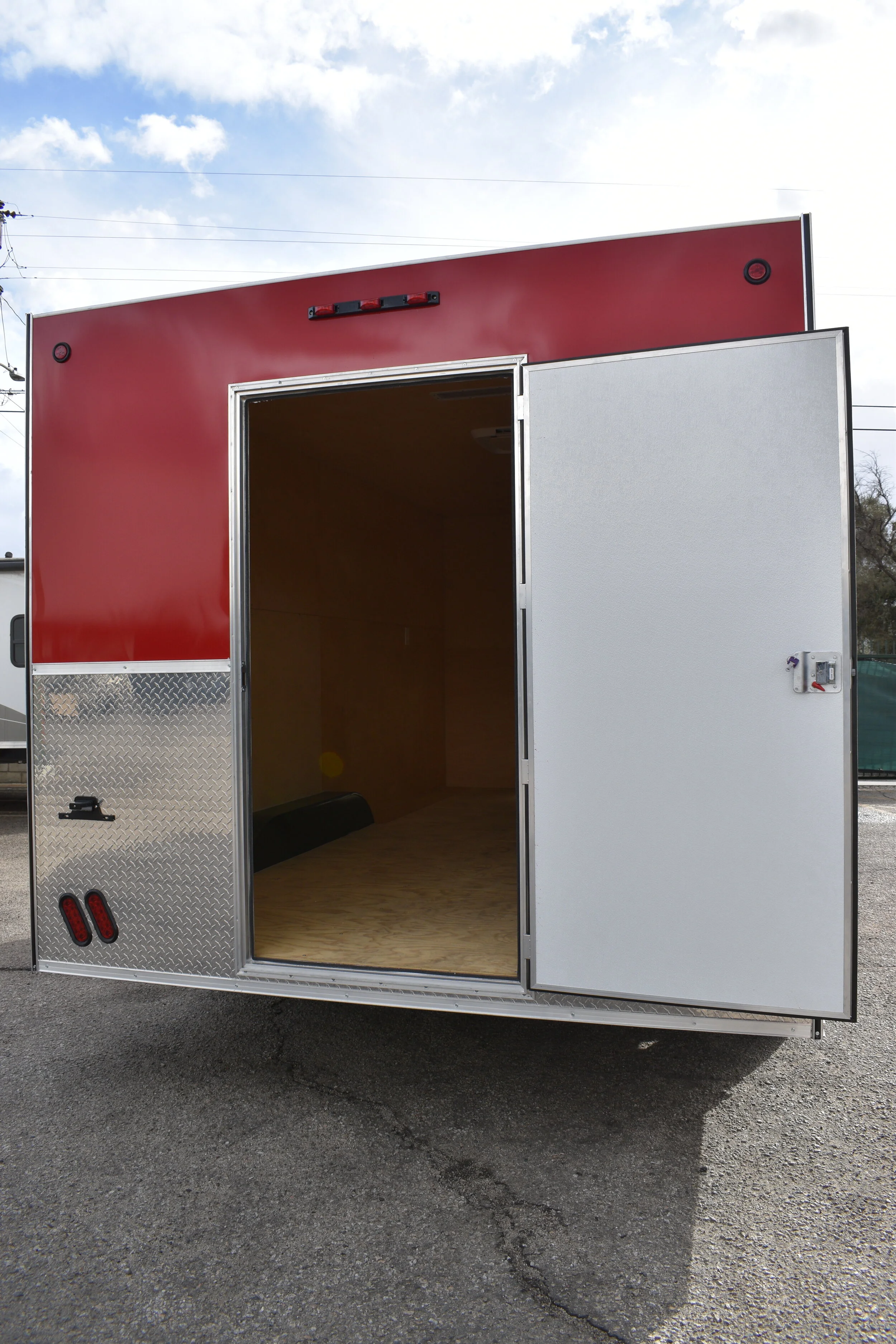

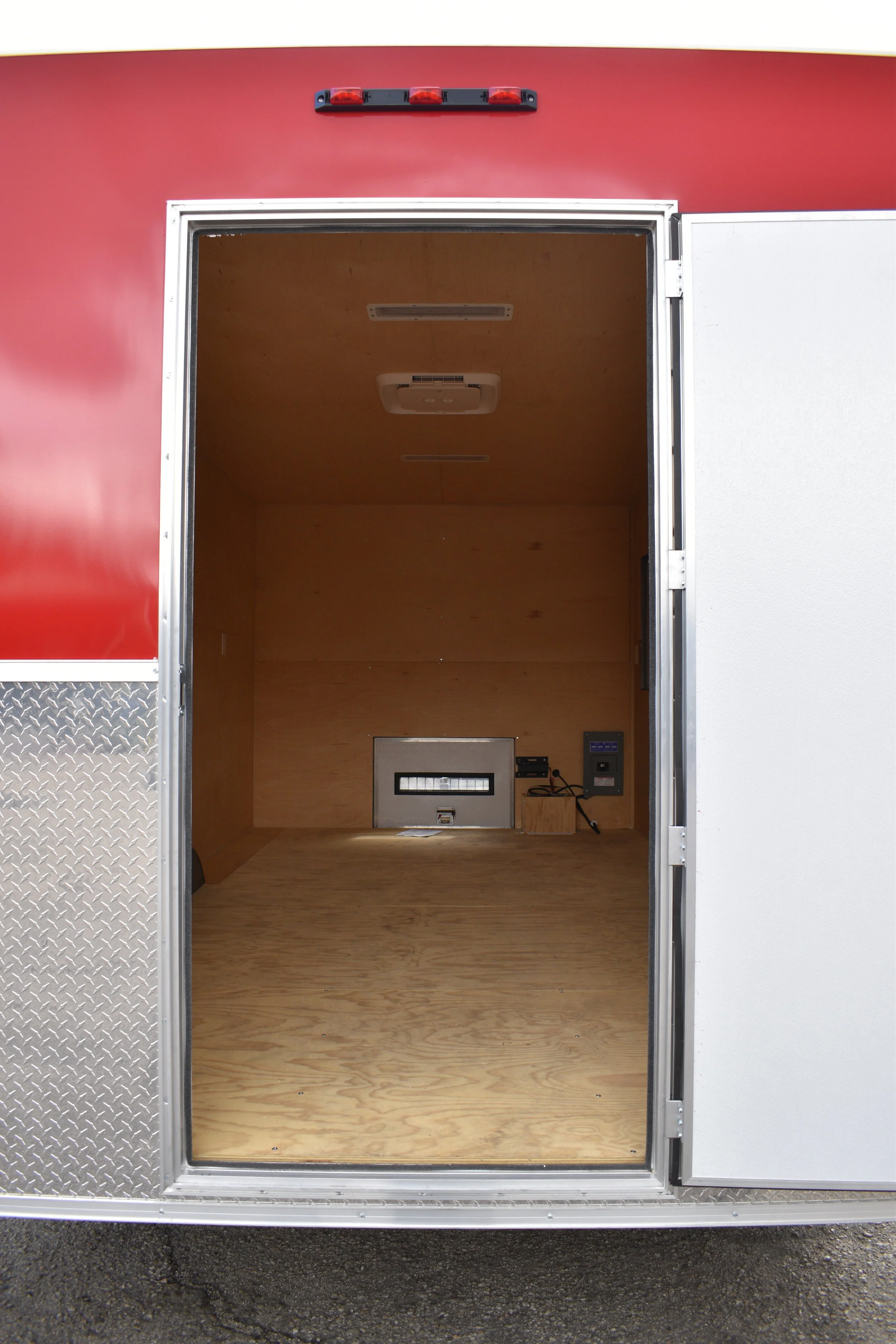

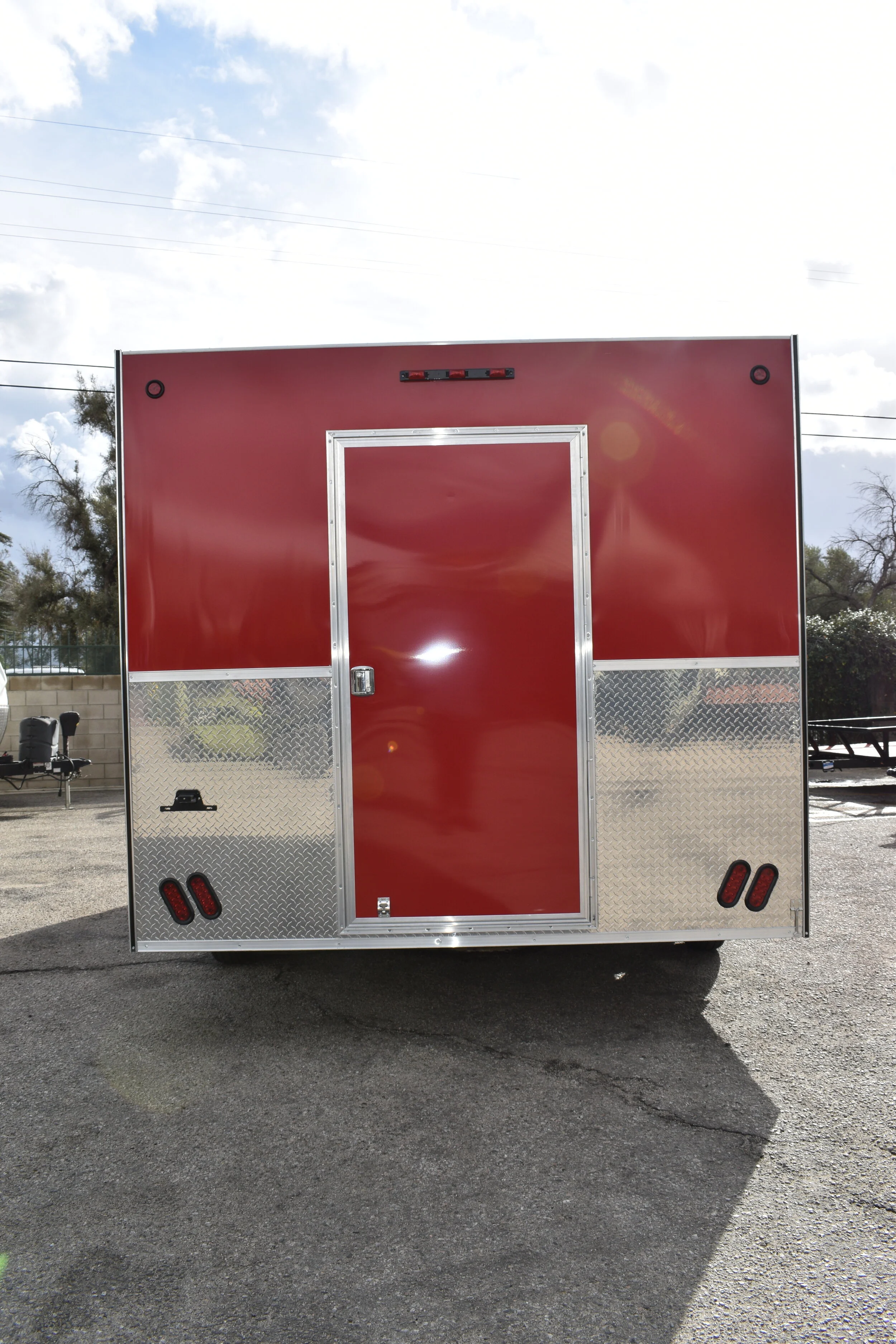

• 1 Rear door 36"x72" w 2 Lockable keys

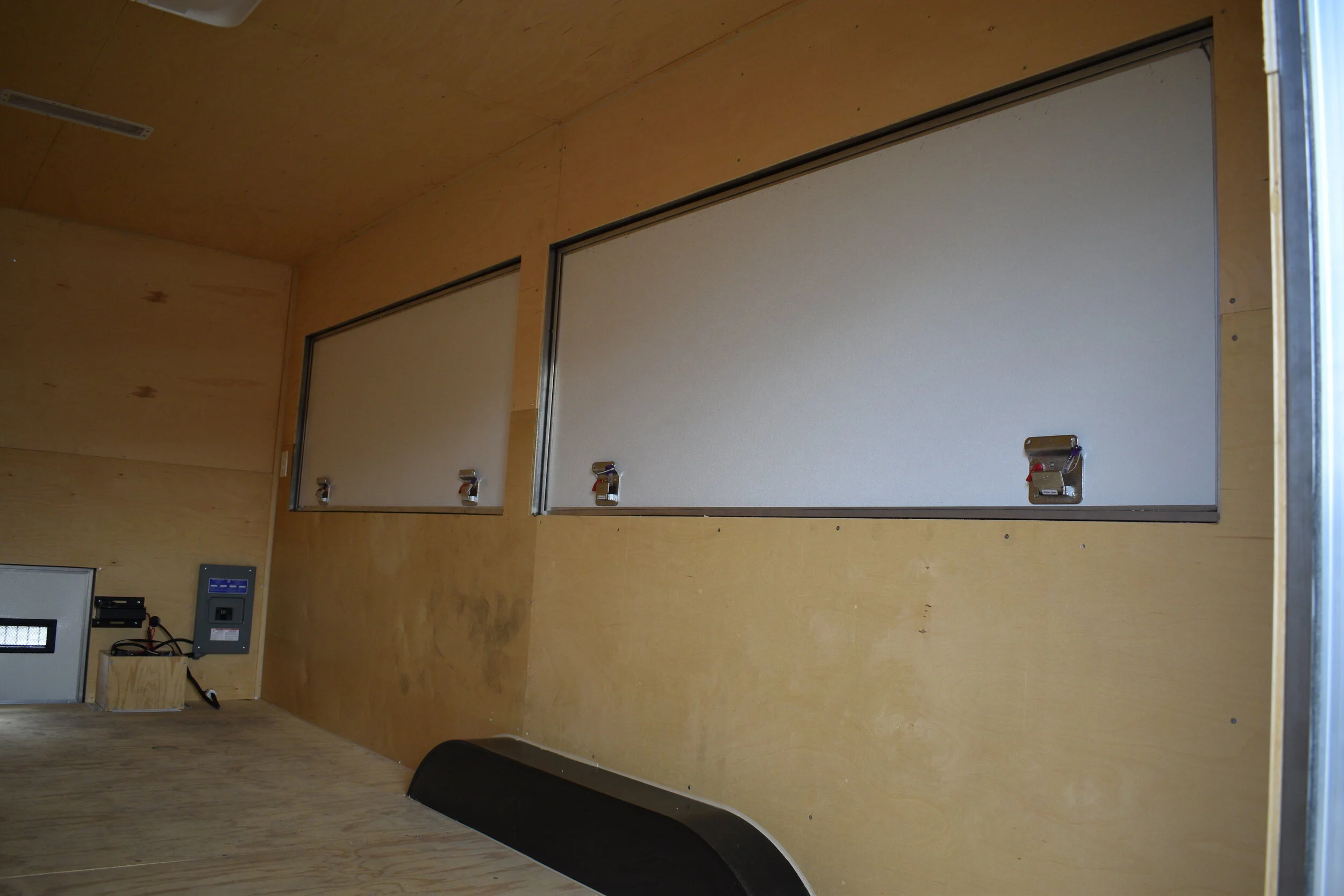

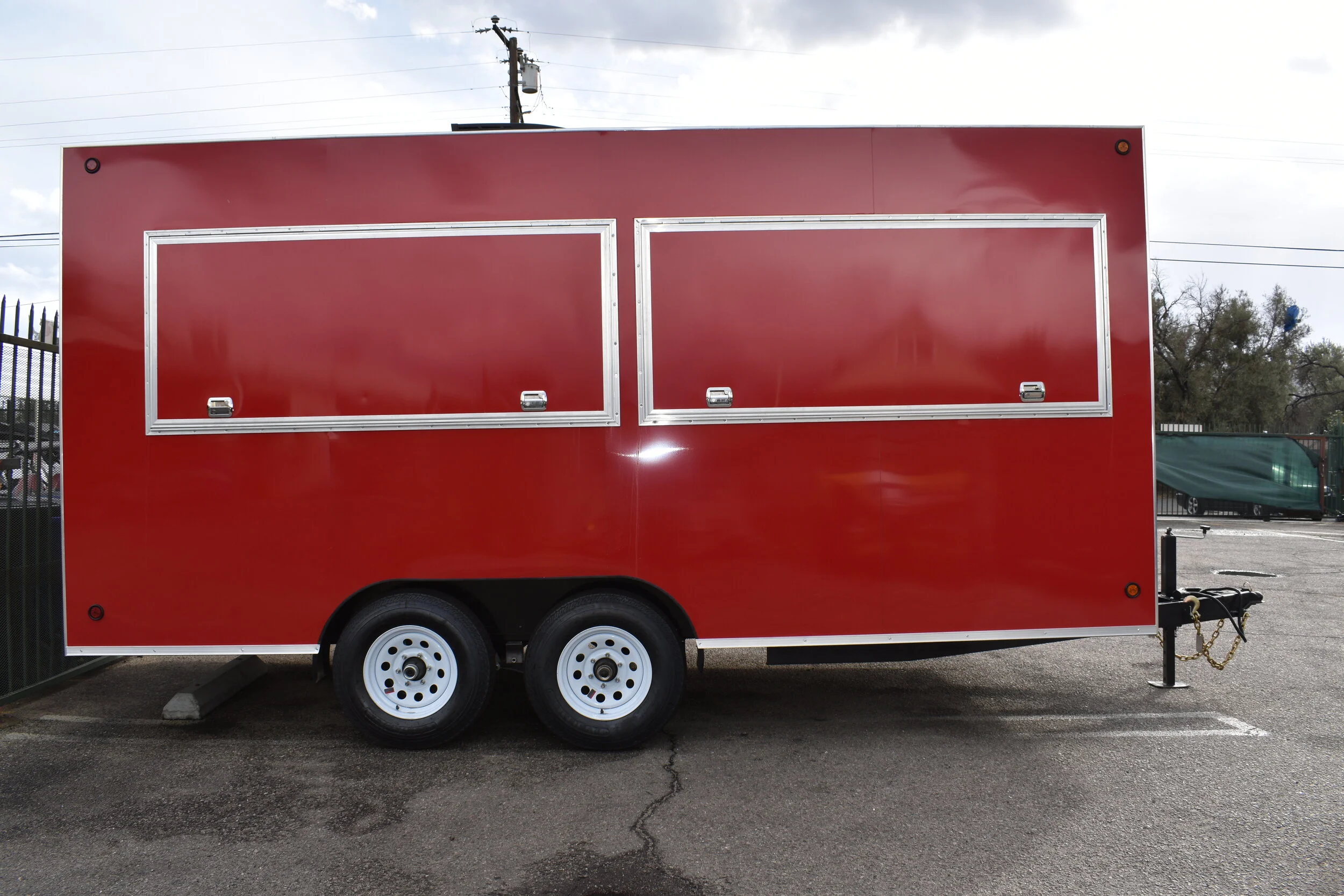

• 2 Passenger Side 80"x33" Vending Door W/ 2 Lockable Keys

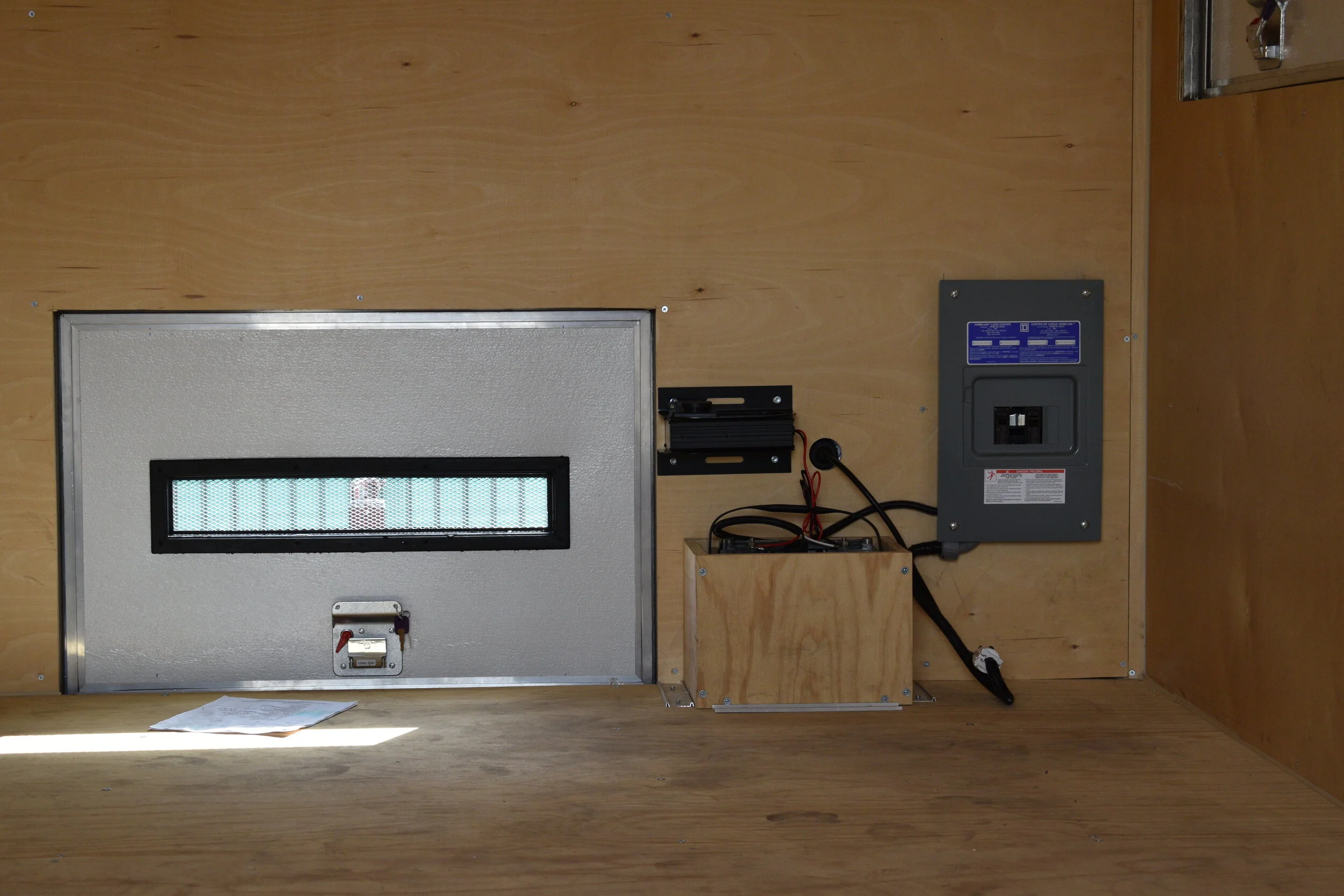

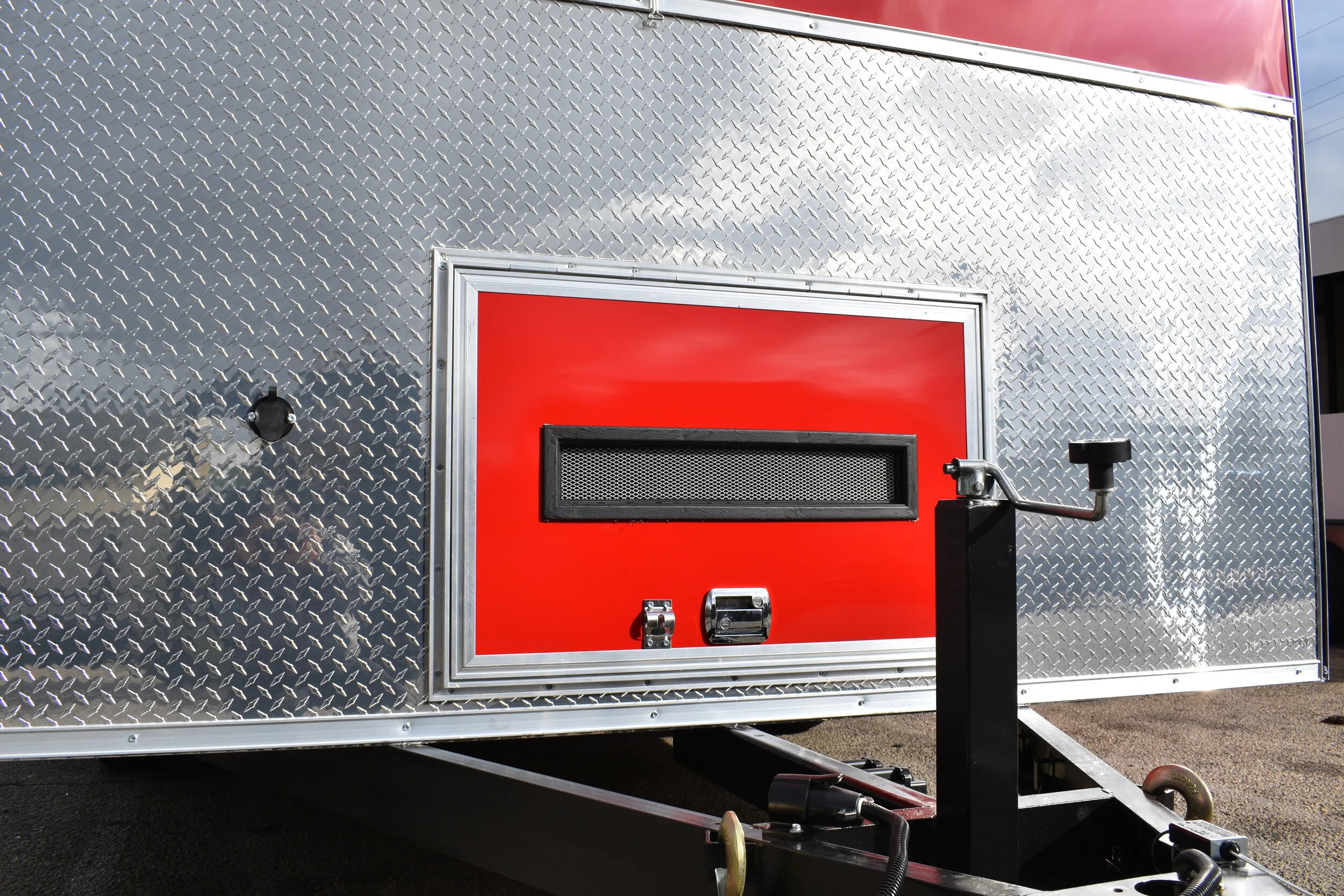

• 1 Baggage / Generator Door 24"x36" W/ 2 Lockable Keys

• 2 double eye spring axles rated @6000lb each (1 electric brake)

• 4 - Bias Wheels 205/75/15 C Rated 6 Ply White

• 1 Led License Plate Light W Bracket

INTERIOR

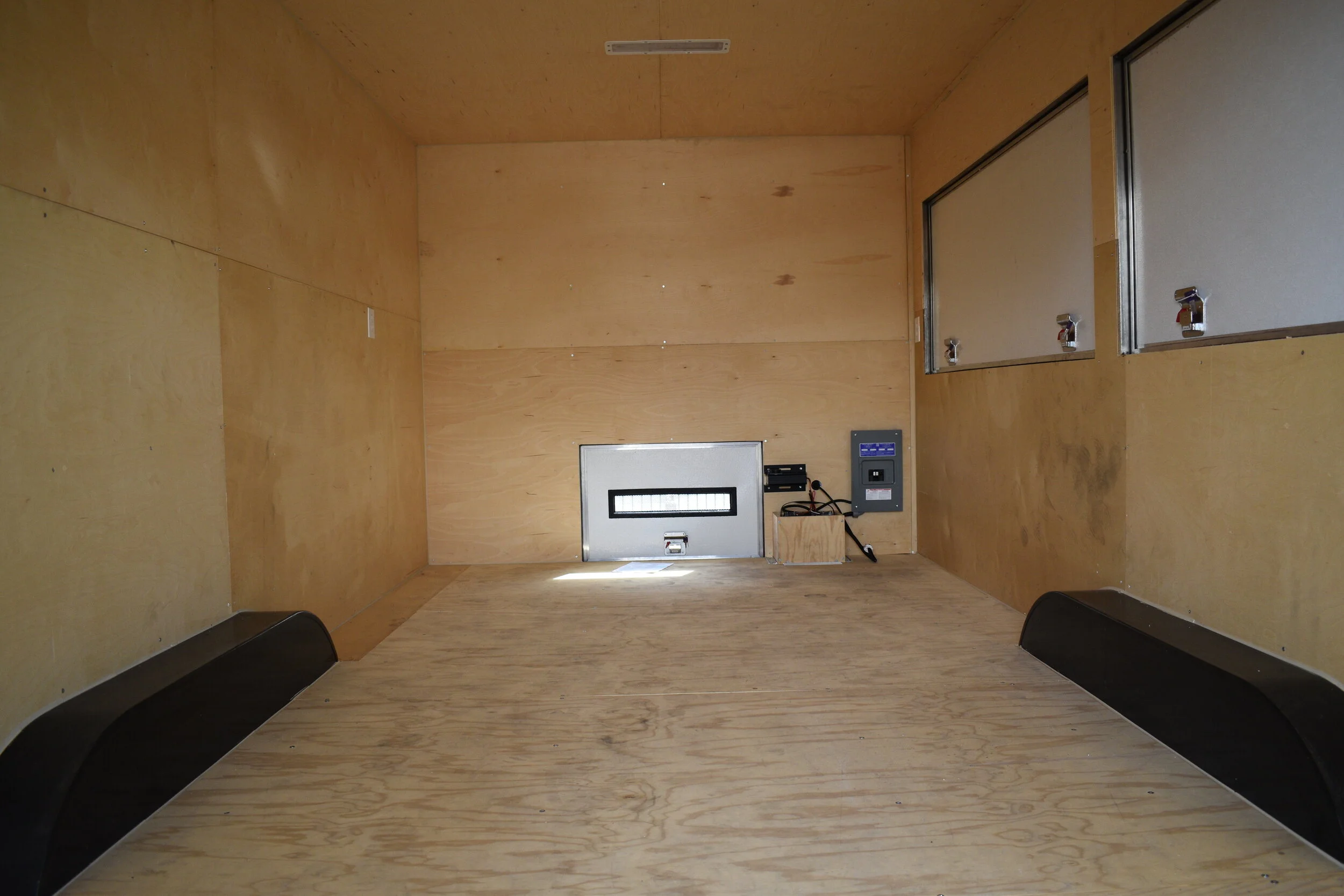

• 3/4" Sanded Plywood Flooring

• Plywood 3/8” Sanded Birch On full walls/Ceiling

• 10 Exterior 2"(3 diode) round led Marker lights

• 4 Exterior 6" Oval flush-mounted Led lights

• 1 Manual 14"x14" roof vent

• 12V Deep Cycle Rv/Marine Battery

• 2 Led 19” Rectangular Interior Light 1,120 Lumens

• 1 light switch

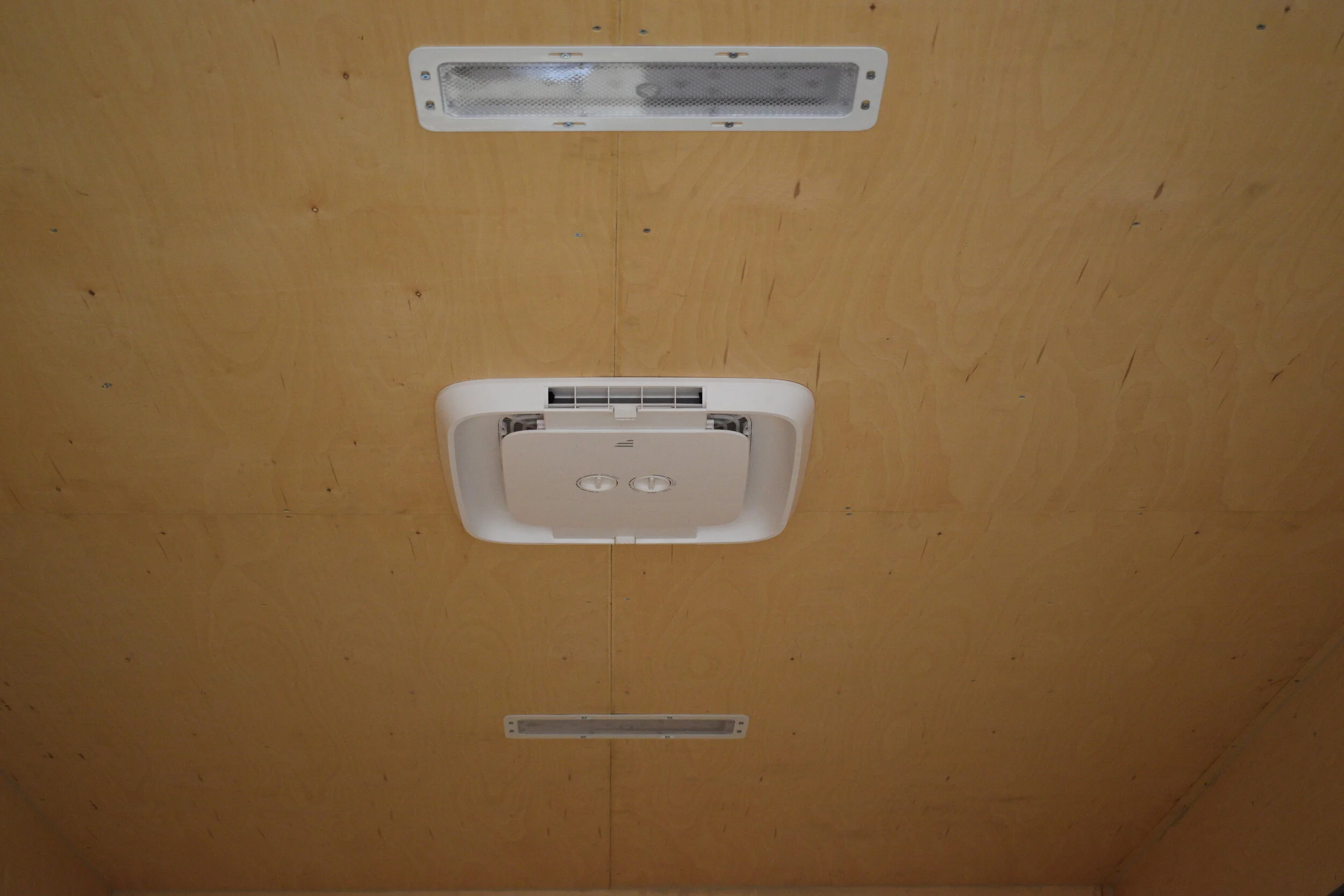

• 15,000 Btu Coleman Mach15 Ac/Heating Unit Installed

• Insulation - Insulation 1” R Tech On Wall/Ceiling/Ramp

• 1 125V AC Power Inlet Port Plug W Integrated 20" Extension Cord

• 2- 19” Rectangular Led Interior Lights 1,120 Lumens

Inside Width 98”

Floor To Ceiling Height 83”

Overall Length 20’

7000lb GVWR

Trailer Weight : 2800lbs

WARRANTY'S:

24 MONTH WARRANTY ON WELDS

60 MONTH WARRANTY ON AXLES

18 MONTH WARRANTY ON BATTERY

NO RETURNS ON ELECTRONICS

NATM CERTIFIED

Made In USA
