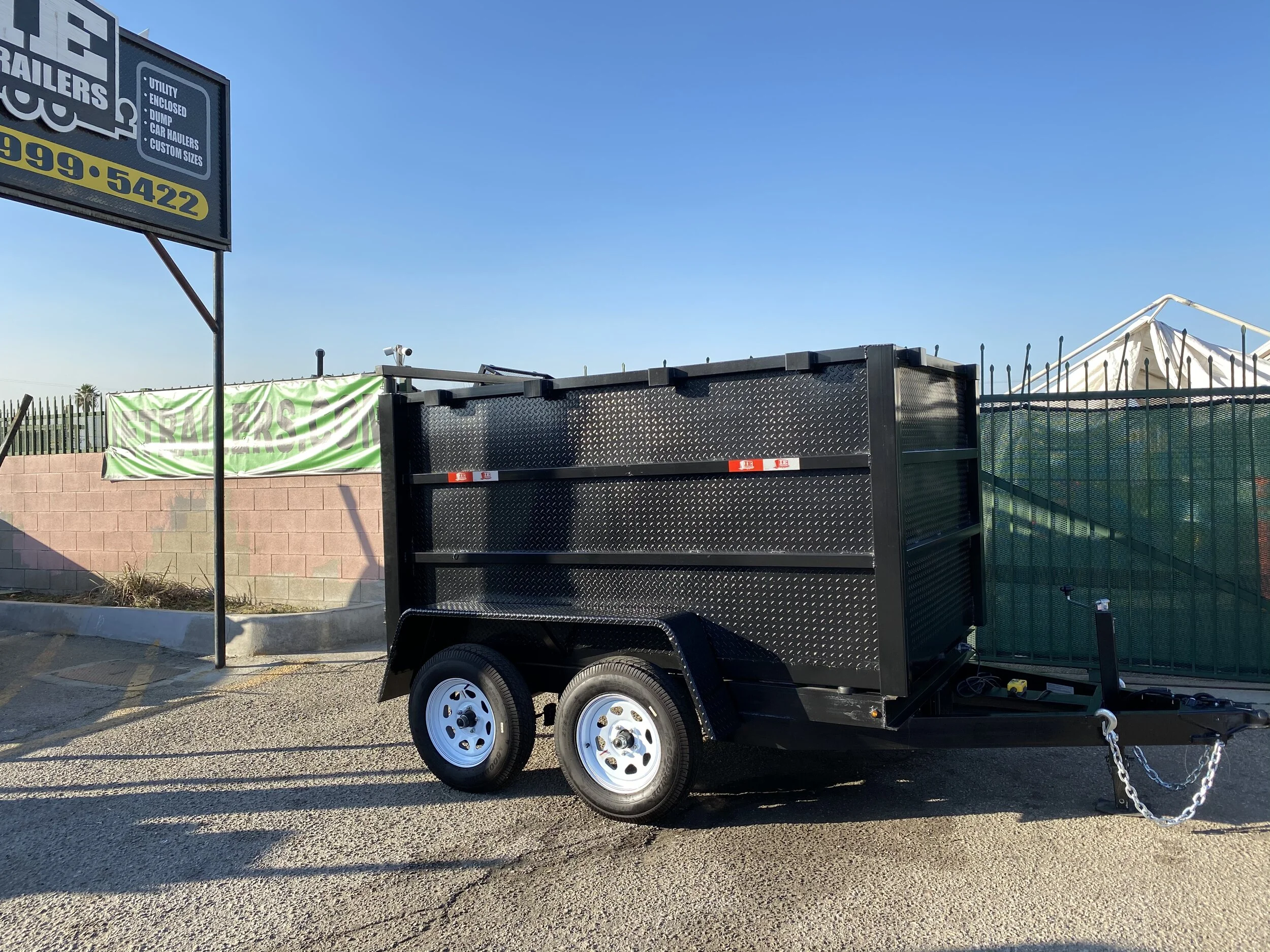

DUMP 5'x8'x4' TA (3.5)K HD
DUMP 5'x8'x4' TA (3.5)K HD

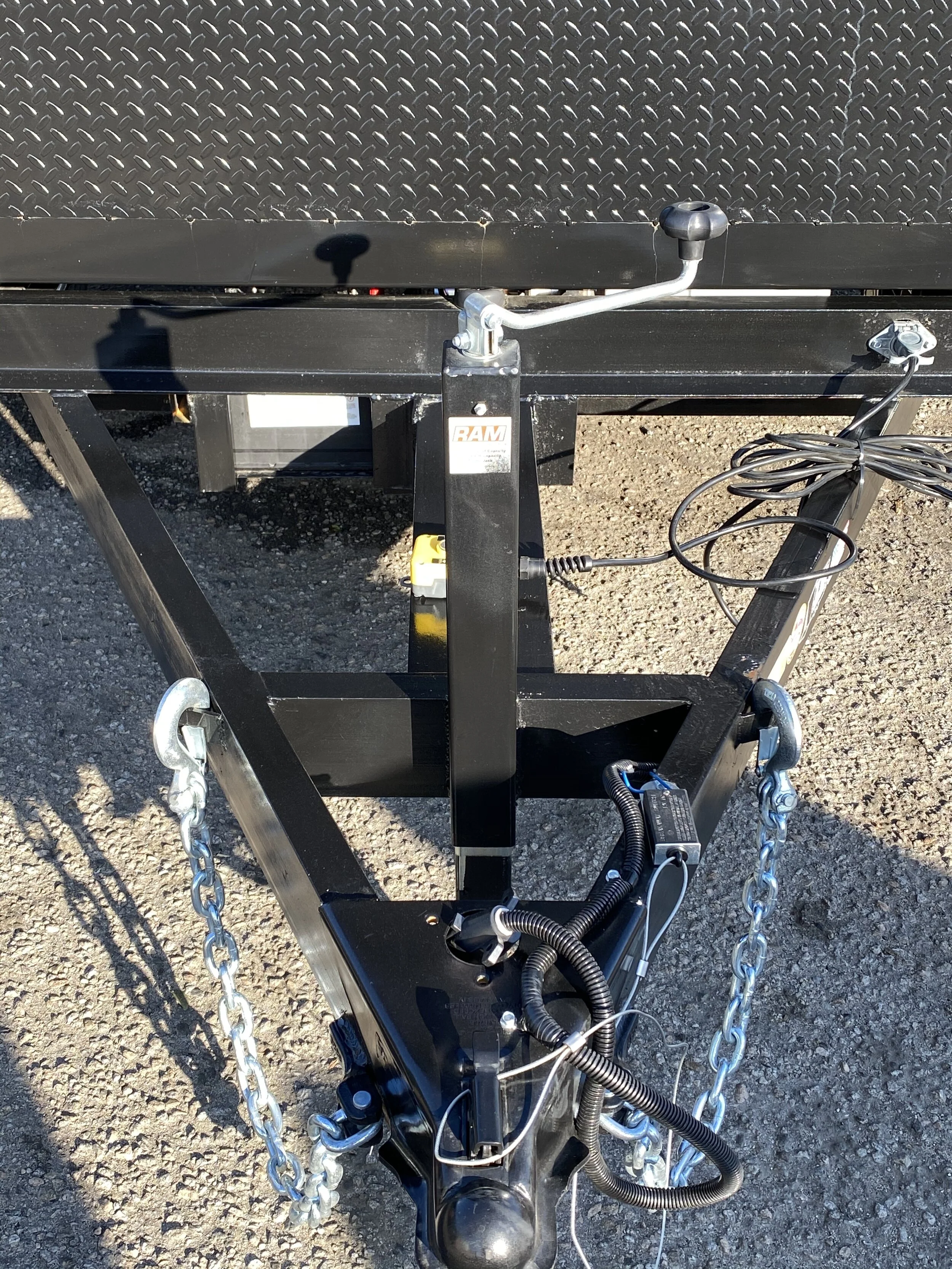

2 5/16" A-frame coupler rated @ 14,000lb
7 way round RV plug
2 detachable class 3 chains 1/4” w latch rated @5,000lb each
7,000lb heavy-duty square drop leg jack
Emergency breakaway kit
4ft' channel#5 tongue wrapped on frame

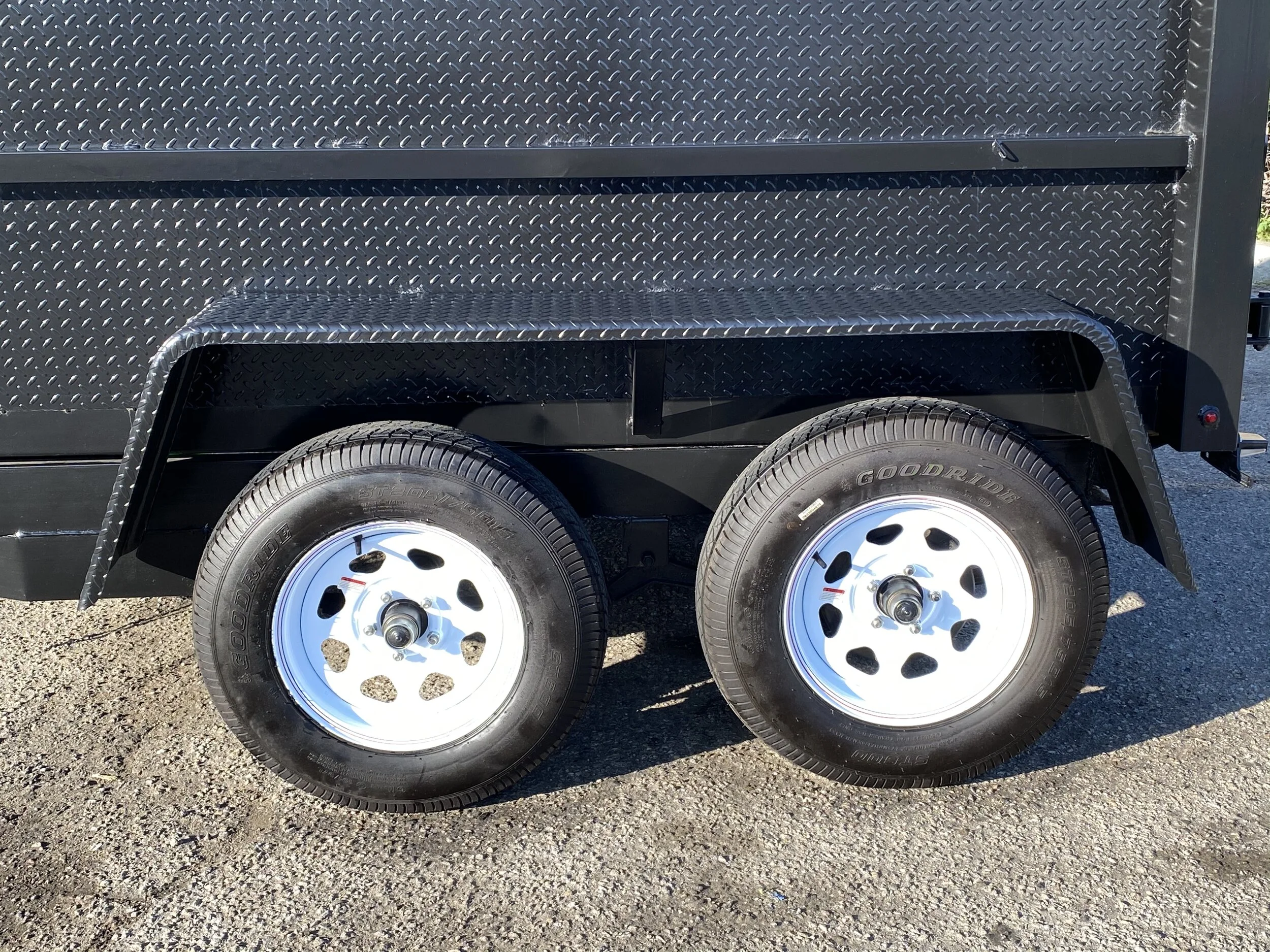

2 heavy-duty 14g treadplate jeep style fenders
2 double eye leaf spring axles rated @3,500lb each (1 electric brake)
4 Wheels Radial 205/75/15 C Rated 6 Ply White

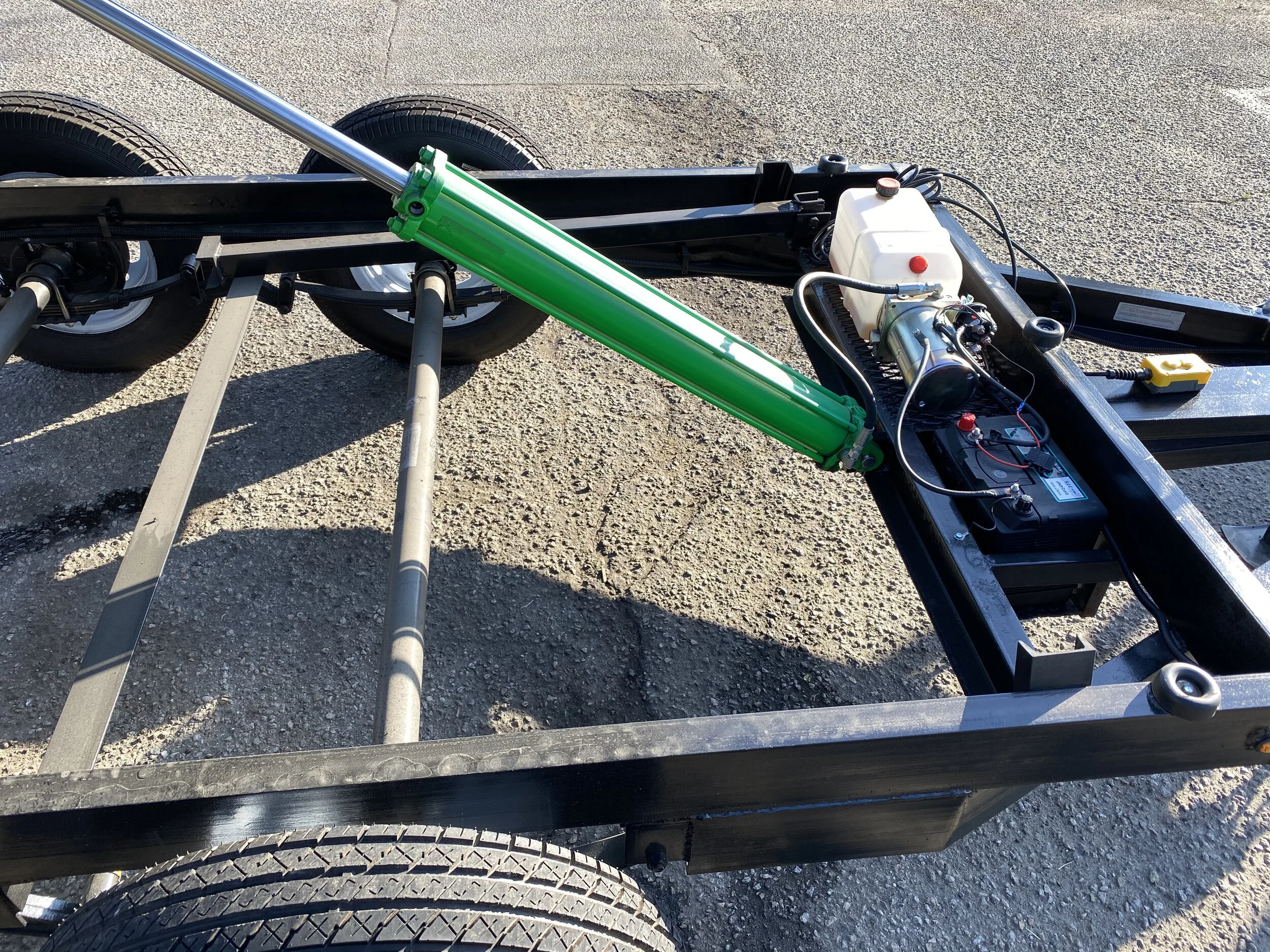

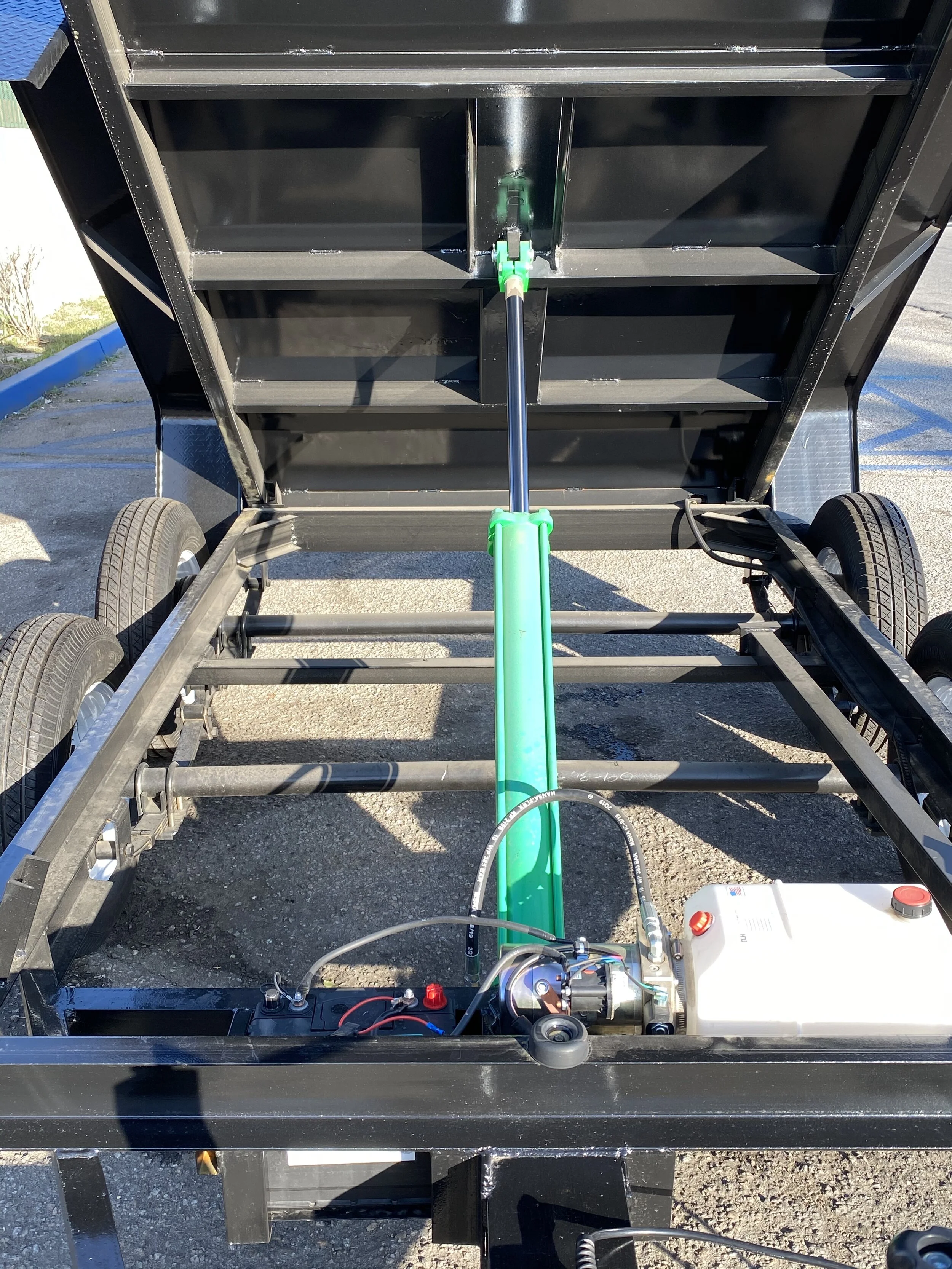

12,000lb hydraulic cylinder/ram 3.5"boreX30"strokeX 1.5”rod (3000psi)sae#8ports

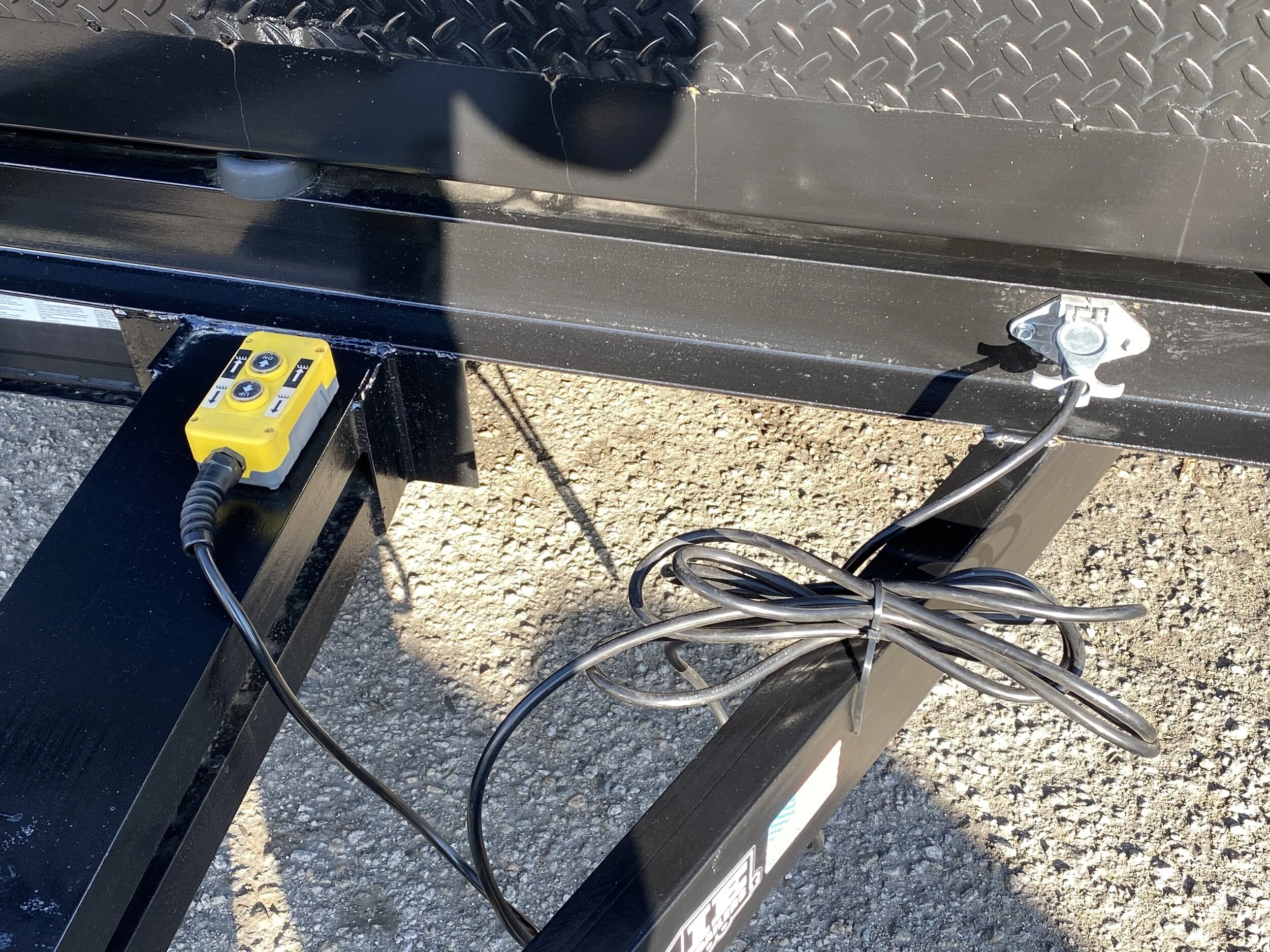

1 single acting hydraulic pump w/18ft remote control
12v deep cycle RV/marine battery

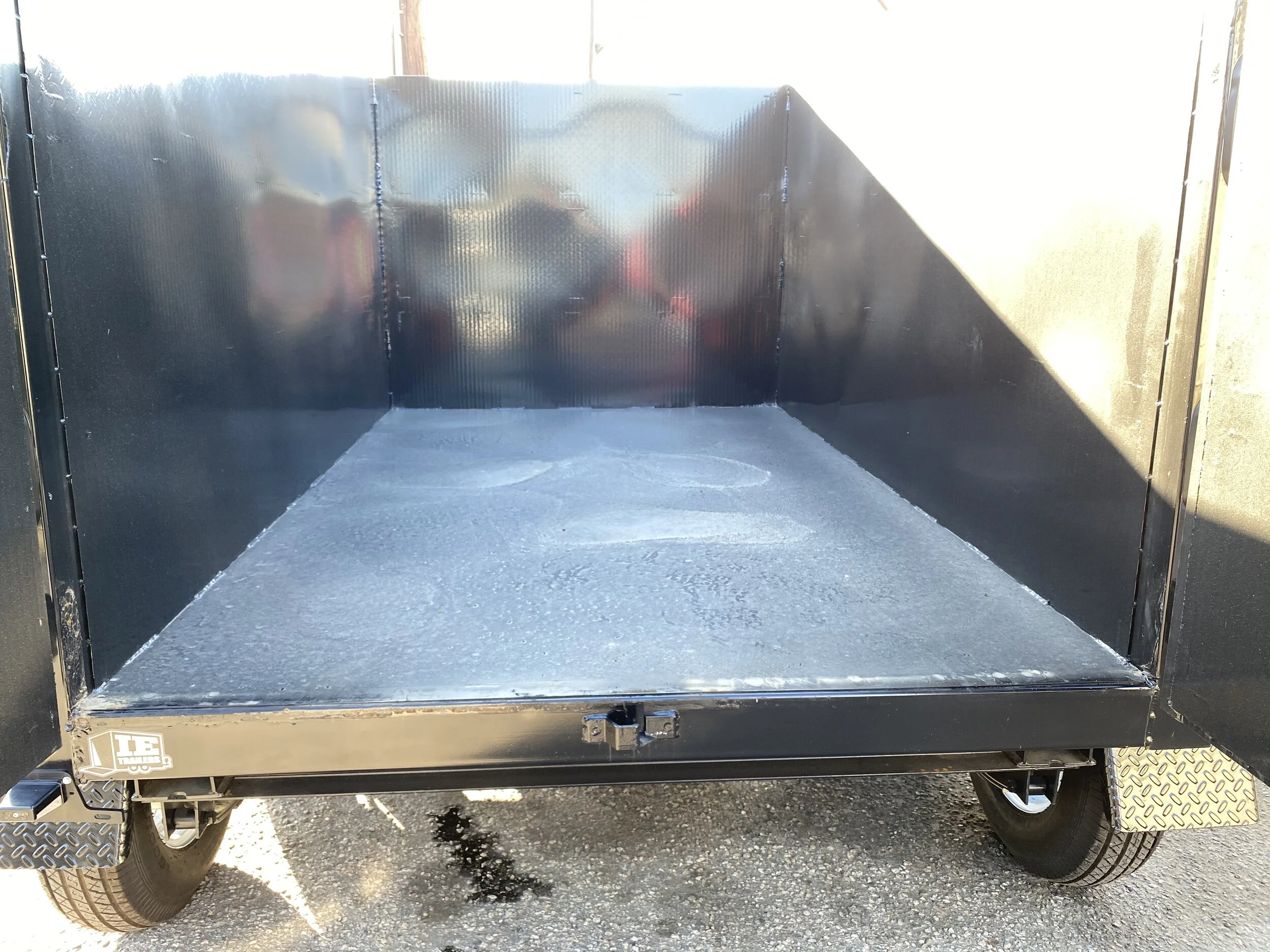

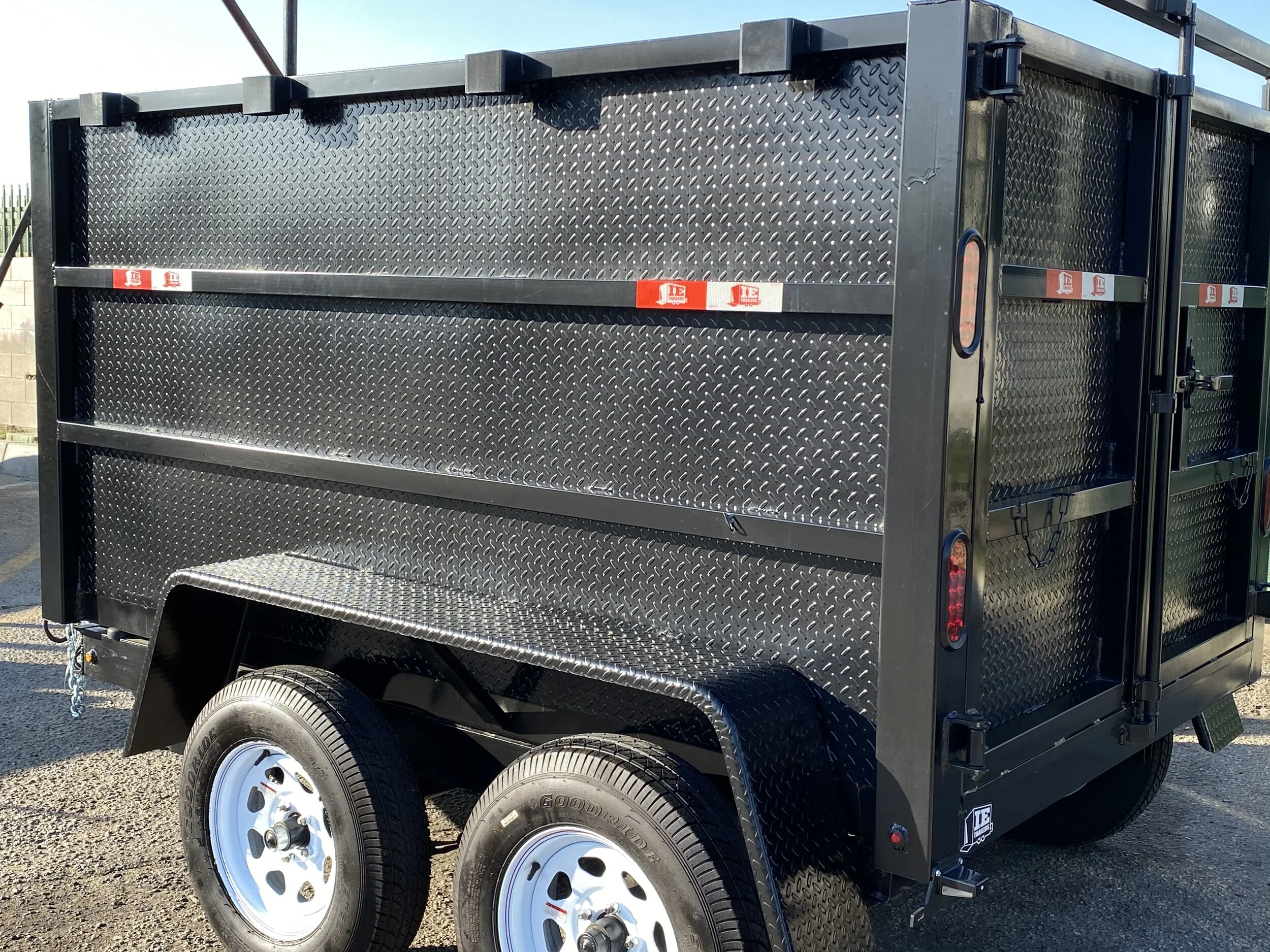

12 gauge hot roll floor & diamond-plate walls and 1ft mesh
10 side bed stake pockets
Removable spreader bar
3 dump bed bumper support
4 Exterior 3/4"(3 diode) round led Marker lights

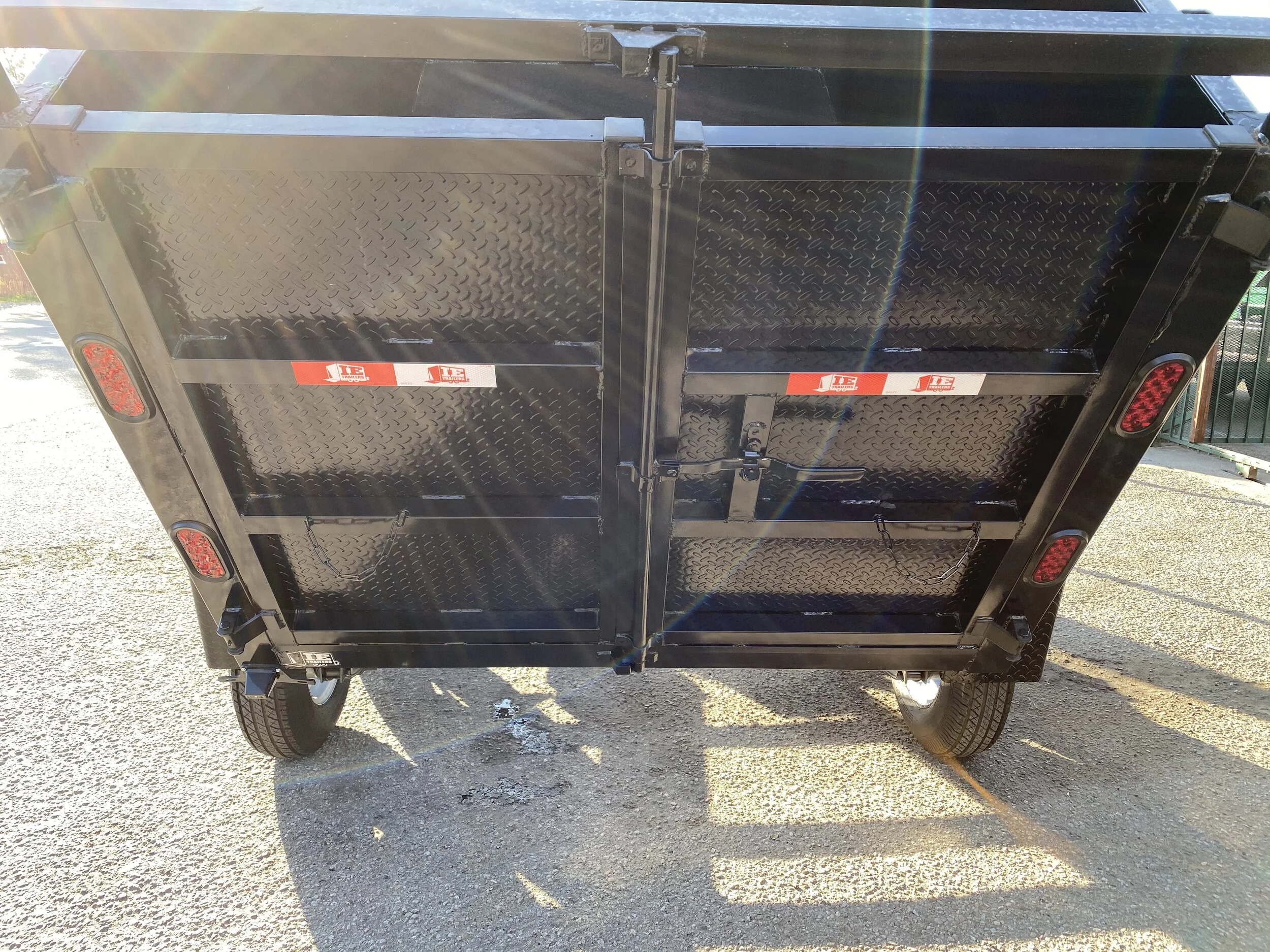

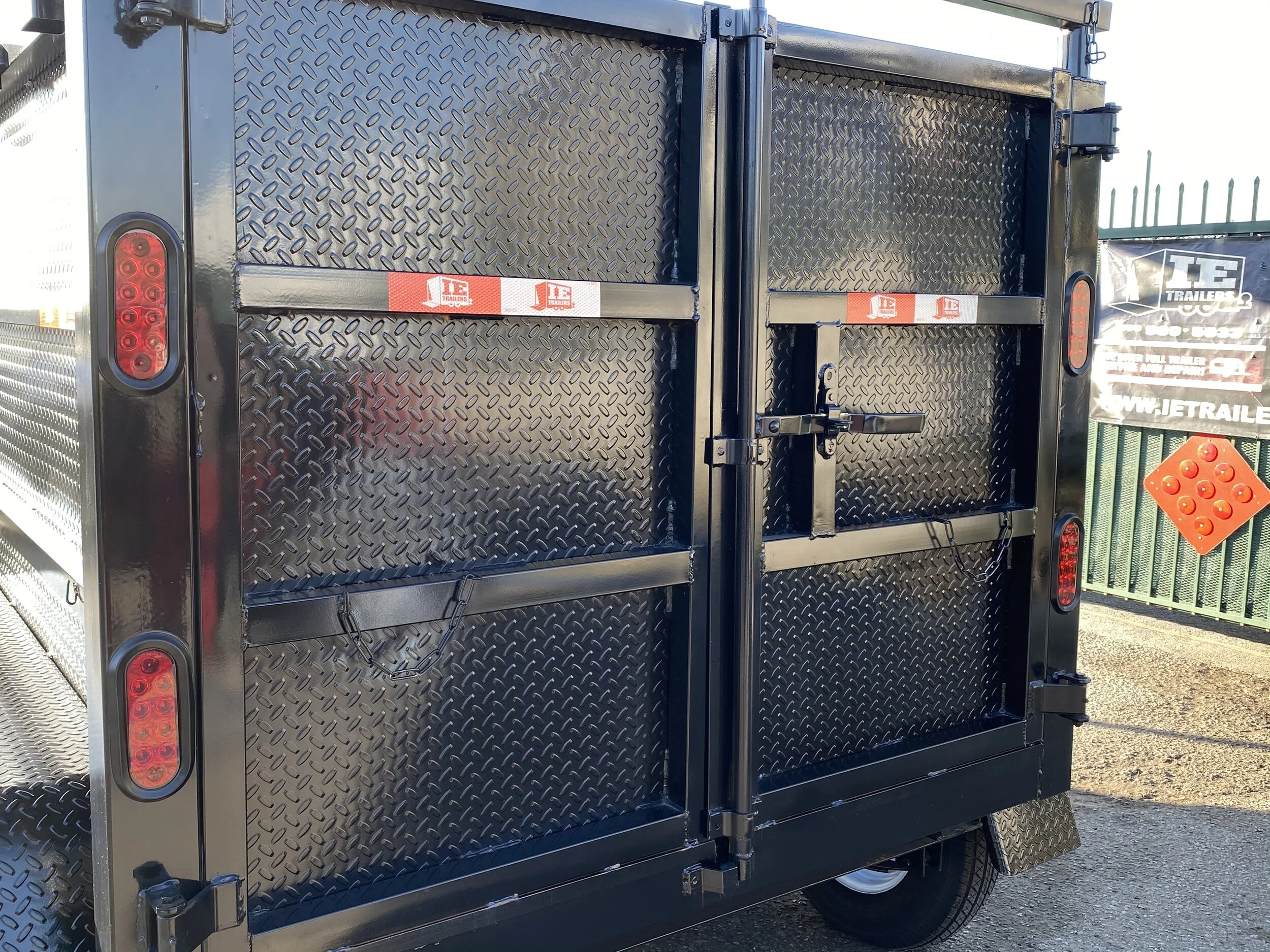

2 Exterior 6" Oval flush-mounted Led tail lights
Dot reflectors
12’ overall length
Trailer weight 2,600lb
7,000lb GVWR
18 Month Warranty on Battery
24 Month Warranty on Welds
60 Month Warranty on axles
18 Month on Hydraulic System
NATM CERTIFIED
Made in the USA
